R9501.1/32
R9501.1/32
R9501.1/32

R9501.1/32

UGC DOR5988650
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$198.00 CAD - $198.00 CAD
$198.00 CAD
$198.00 CAD - $198.00 CAD
$198.00 CAD

Vendu en lots de : 1

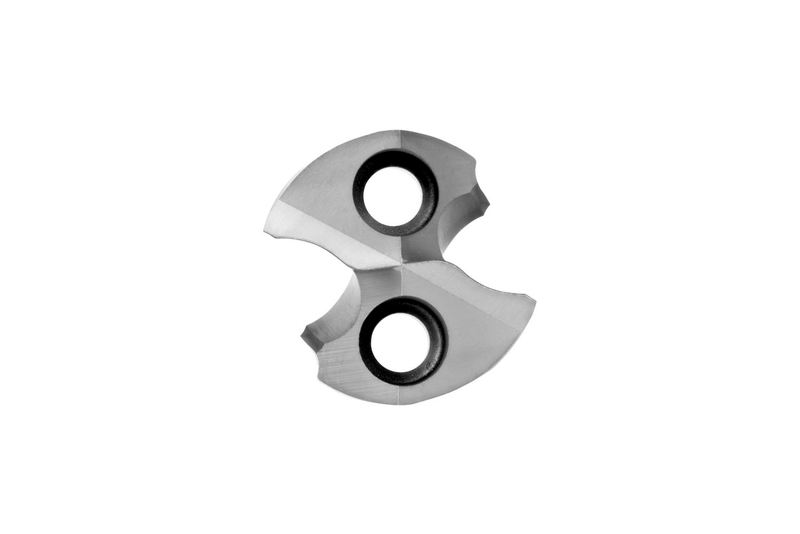

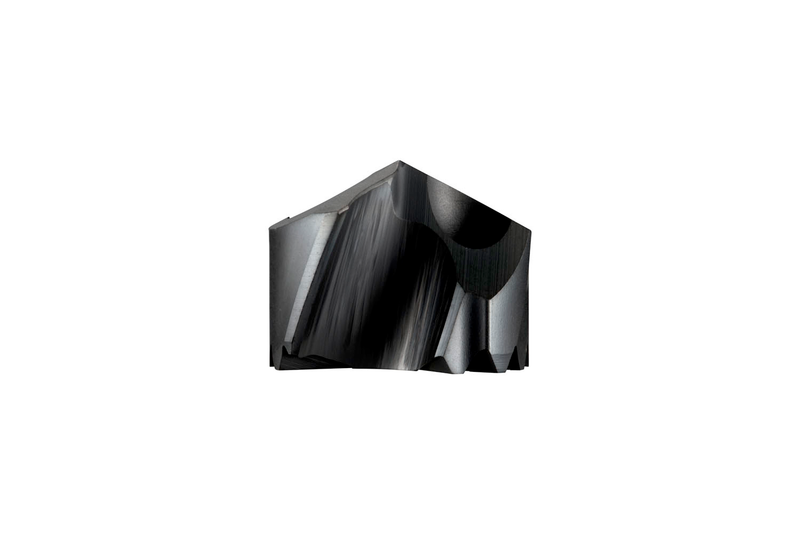

Tête de forage remplaçable haute performance HYDRA P, diamètre 1,0313" (1.1/32) selon la norme DORMER avec pointe fendue à 4 facettes modifiée de 140°, carbure monobloc avec revêtement Ti-phon pour le perçage de l'acier en combinaison avec le corps HYDRA taille 1.3/64" ou 26 mm, H853 pour jusqu'à 3xD, H855 pour jusqu'à 5xD ou H858 pour jusqu'à 8xD

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R9501.1/32
GradeTi-phon
Product Number5988650
Product FamilyR950
Dimensions

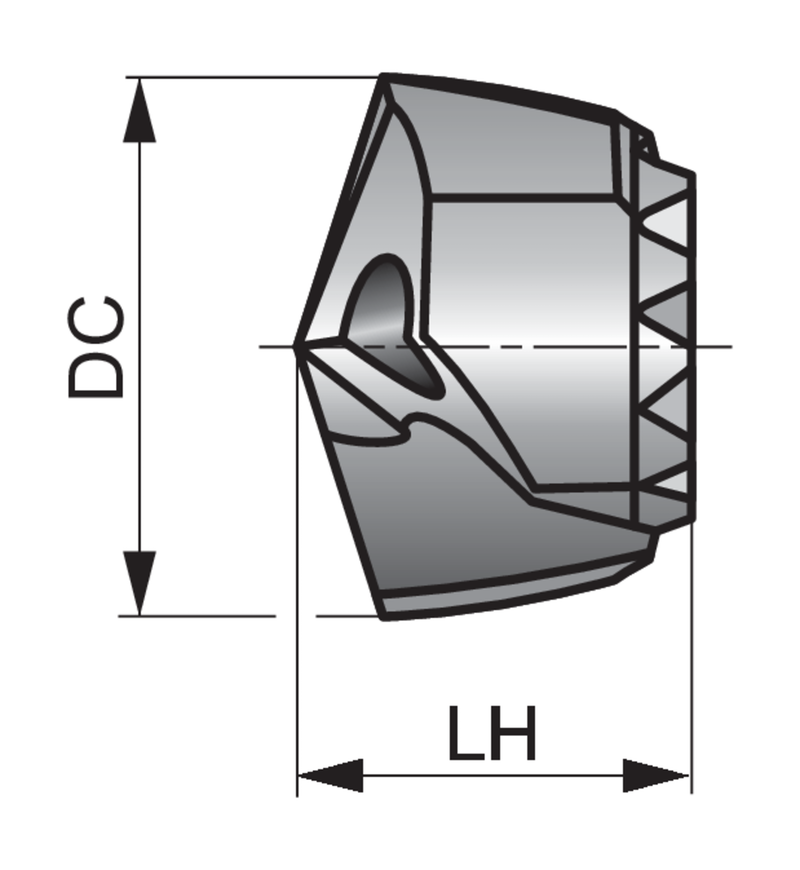

Cutting Diameter — in (DC)1.0313"
Cutting Diameter — mm (DC)26.19 mm
Cutting Diameter — Fractional1.1/32
Drill Point Angle (SIG)140°
Tool Information
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number13120
EAN7320760013120
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
R9501.1/32 — 3D Model STP Download
R9501.1/32 — 2D Model DXF Download
R9501.1/32 — Line Drawing PDF Download
