H85551/64
H85551/64
H85551/64
H85551/64

H85551/64

UGC DOR5988770
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$622.00 CAD - $622.00 CAD
$622.00 CAD
$622.00 CAD - $622.00 CAD
$622.00 CAD

Vendu en lots de : 1

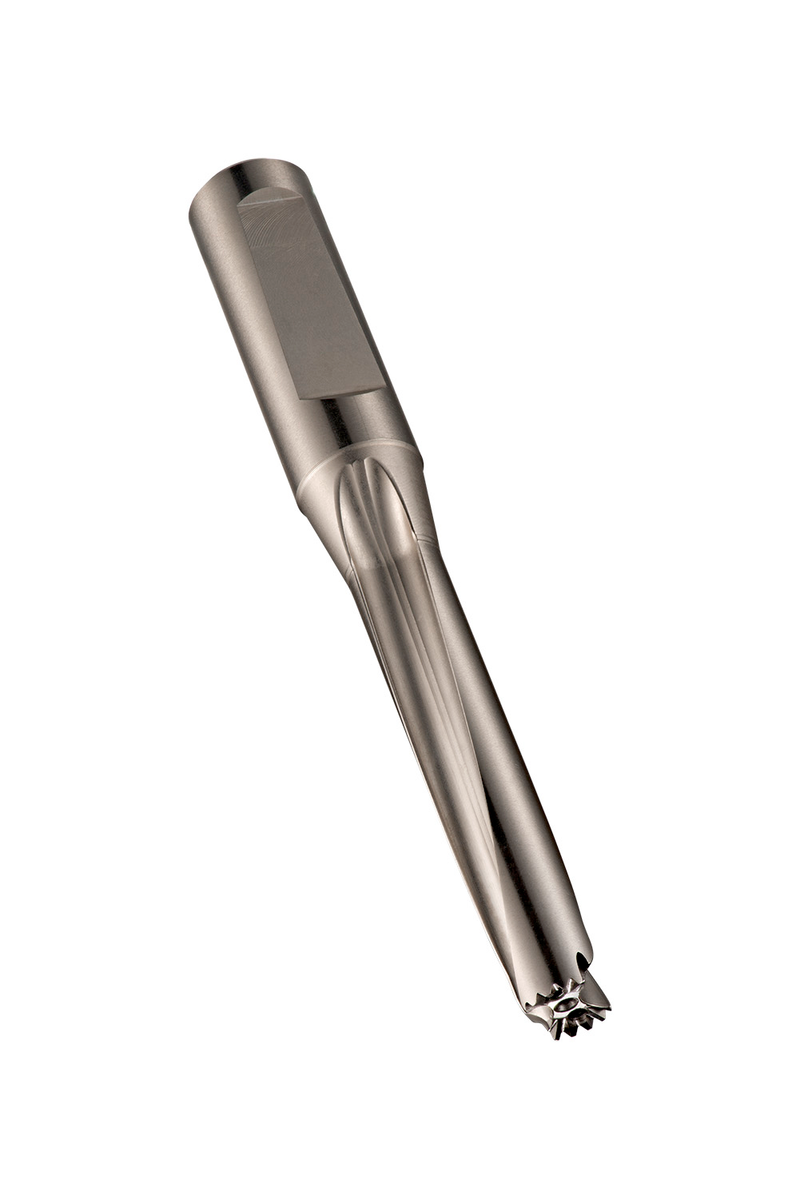

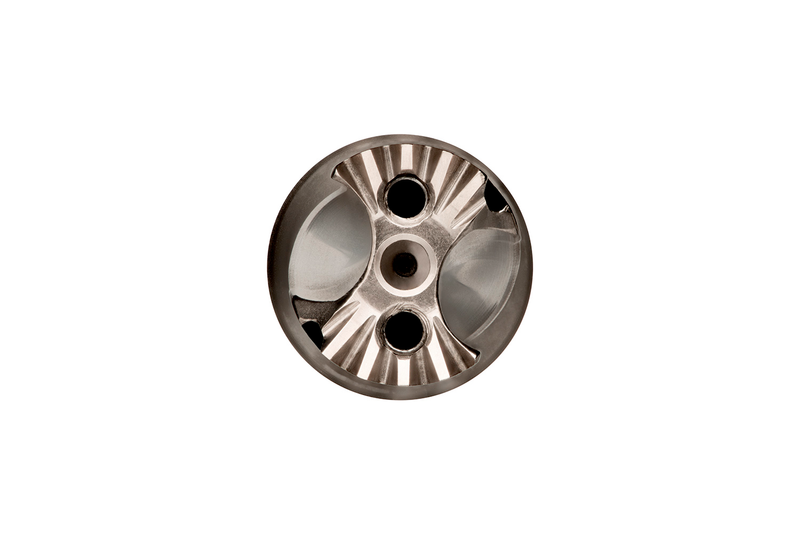

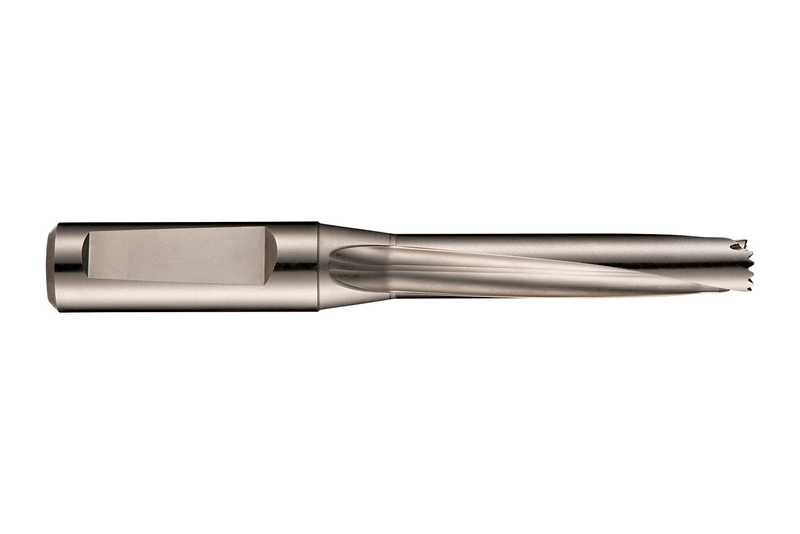

Corps de foret à tête interchangeable HYDRA avec queue cylindrique DIN 6535HE à encoche pour vis de blocage, taille 51/64" avec une longueur totale de 196,5 mm et une longueur de coupe de 114,5 mm selon la norme DORMER pour le perçage 5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 0,7717 à 0,8071"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85551/64
GradePlaqué nickel
Product Number5988770
Product FamilyH855

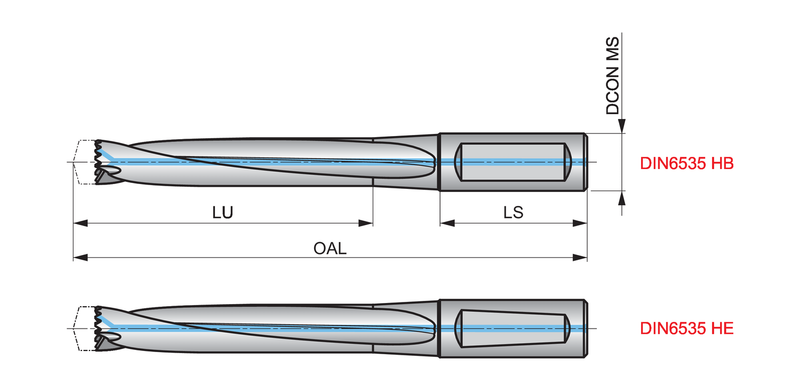

Dimensions
Overall Length — in (OAL)7.7362"
Overall Length — mm (OAL)196.5 mm
Length × Diameter Ratio5
Usable Length — in (LU)4.5079"
Usable Length — mm (LU)114.5 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number34804
EAN7320760034804
File Type Download
H85551/64 — 3D Model STP Download
H85551/64 — 2D Model DXF Download
H85551/64 — Line Drawing PDF Download
