H85559/64
H85559/64
H85559/64
H85559/64

H85559/64

UGC DOR5988778
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$664.00 CAD - $664.00 CAD
$664.00 CAD
$664.00 CAD - $664.00 CAD
$664.00 CAD

Vendu en lots de : 1

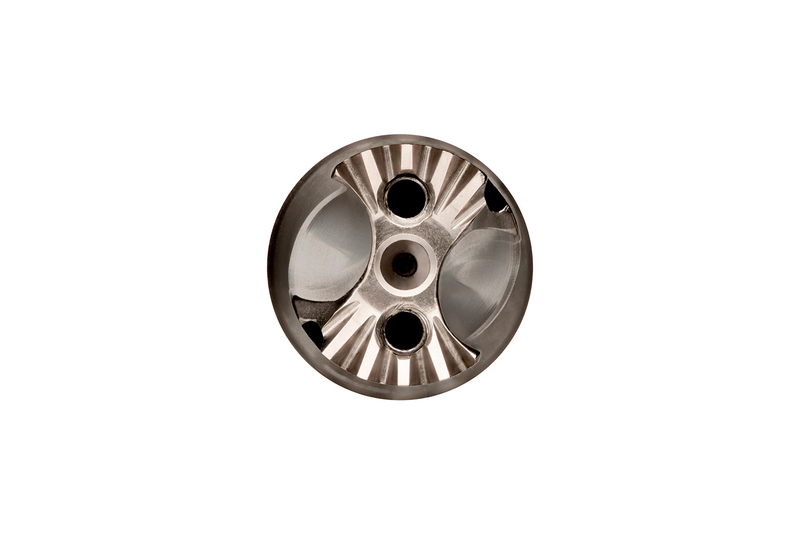

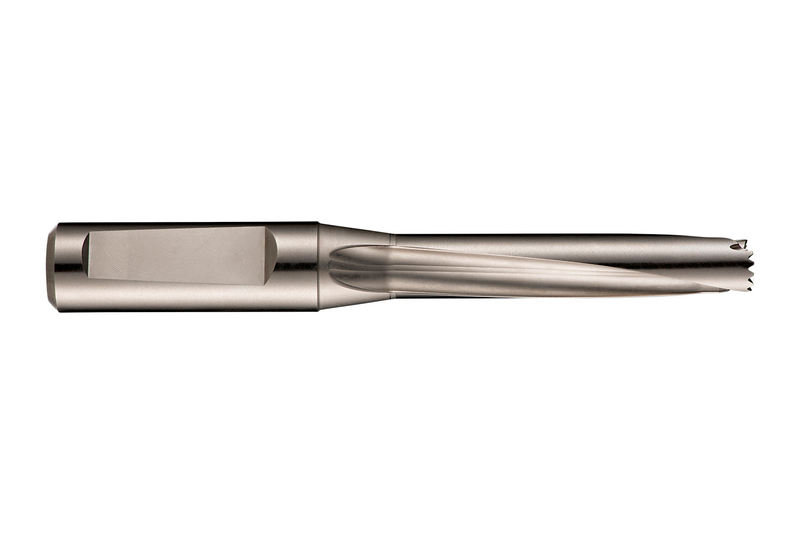

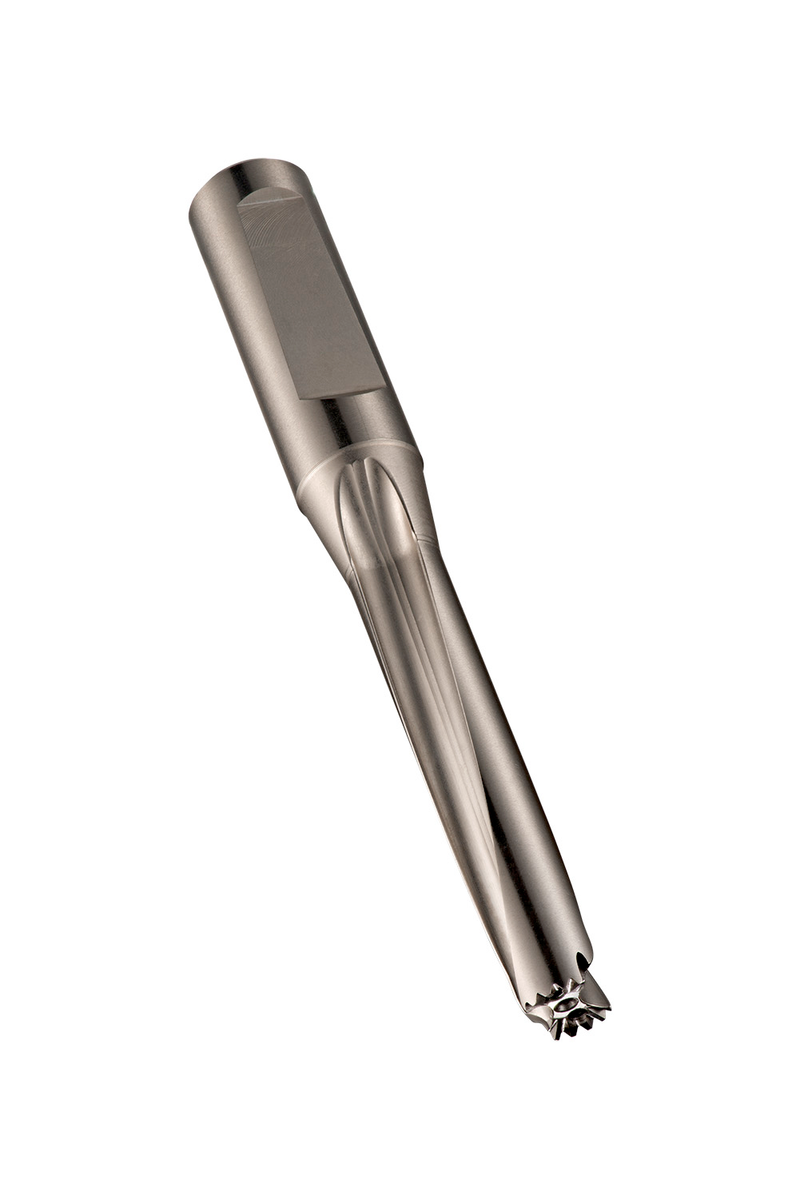

Corps de foret à têtes interchangeables HYDRA avec queue cylindrique à méplat DIN 6535HE, taille 59/64" avec une longueur totale de 210,5 mm et une longueur de goujure de 129,5 mm selon la norme DORMER pour un perçage 5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 0.9055 à 0.9252"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85559/64
GradePlaqué nickel
Product Number5988778
Product FamilyH855

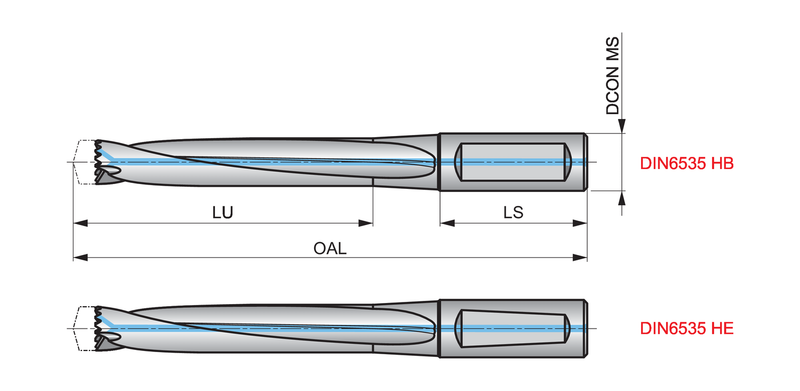

Dimensions
Overall Length — in (OAL)8.2874"
Overall Length — mm (OAL)210.5 mm
Length × Diameter Ratio5
Usable Length — in (LU)5.0984"
Usable Length — mm (LU)129.5 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number34842
EAN7320760034842
File Type Download
H85559/64 — 3D Model STP Download
H85559/64 — 2D Model DXF Download
H85559/64 — Line Drawing PDF Download
