UGC DOR5988800
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$755.00 CAD - $755.00 CAD
$755.00 CAD
$755.00 CAD - $755.00 CAD
$755.00 CAD

Vendu en lots de : 1

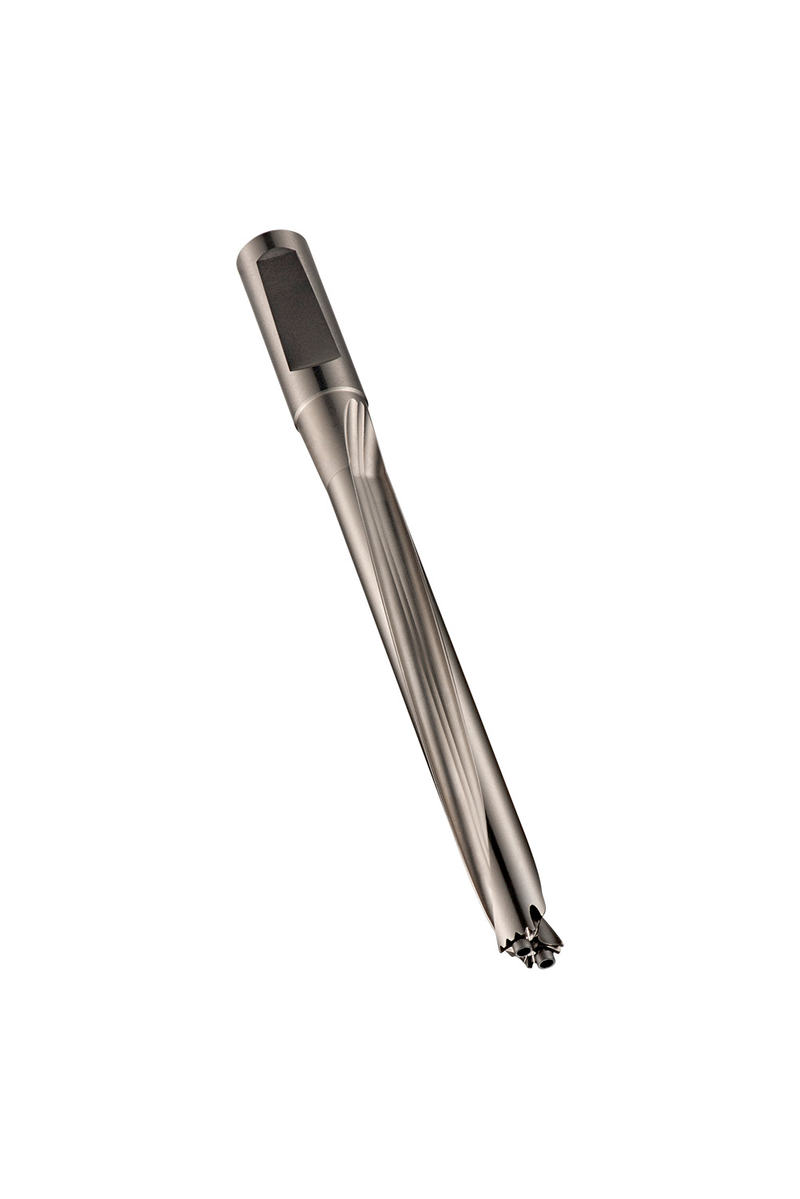

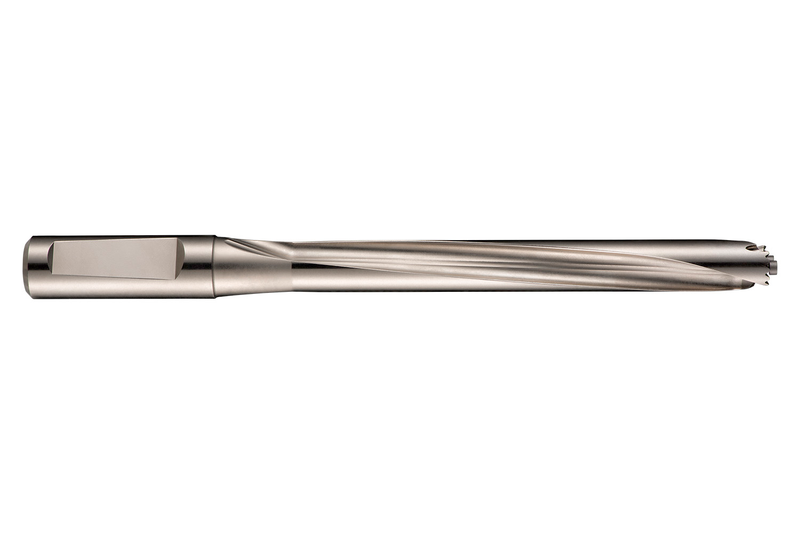

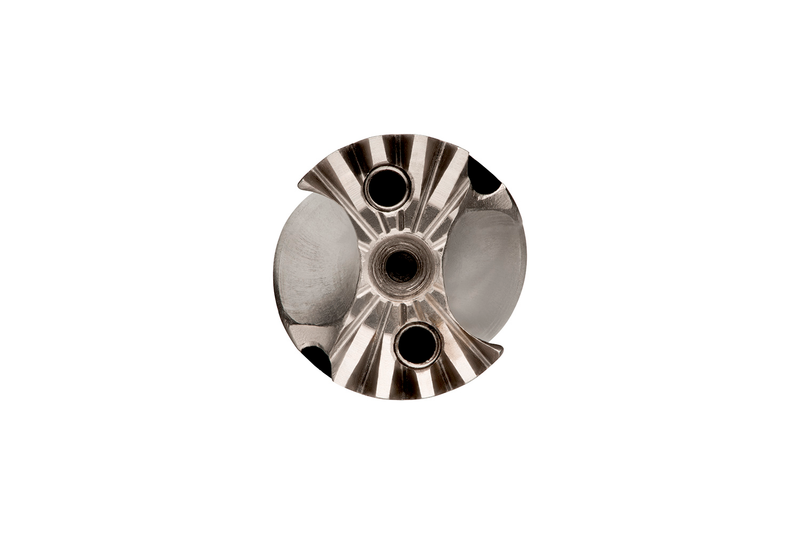

Corps de foret à tête amovible HYDRA avec queue cylindrique DIN 6535HE avec méplat, taille 17,0 mm avec une longueur totale de 221,5 mm et une longueur de goujure de 150,5 mm selon la norme DORMER pour le perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 16,6 à 17,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85817.0
GradePlaqué nickel
Product Number5988800
Product FamilyH858

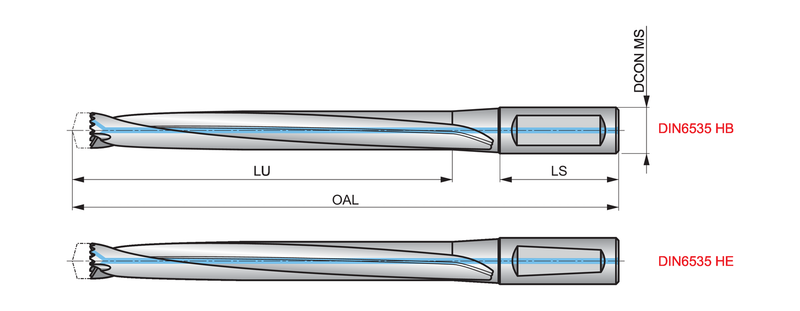

Dimensions
Overall Length — in (OAL)8.7205"
Overall Length — mm (OAL)221.5 mm
Length × Diameter Ratio8
Usable Length — in (LU)5.9252"
Usable Length — mm (LU)150.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number18699
EAN7320760018699
File Type Download
H85817.0 — 3D Model STP Download
H85817.0 — 2D Model DXF Download
H85817.0 — Line Drawing PDF Download
