UGC DOR5988812
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$810.00 CAD - $810.00 CAD
$810.00 CAD
$810.00 CAD - $810.00 CAD
$810.00 CAD

Vendu en lots de : 1

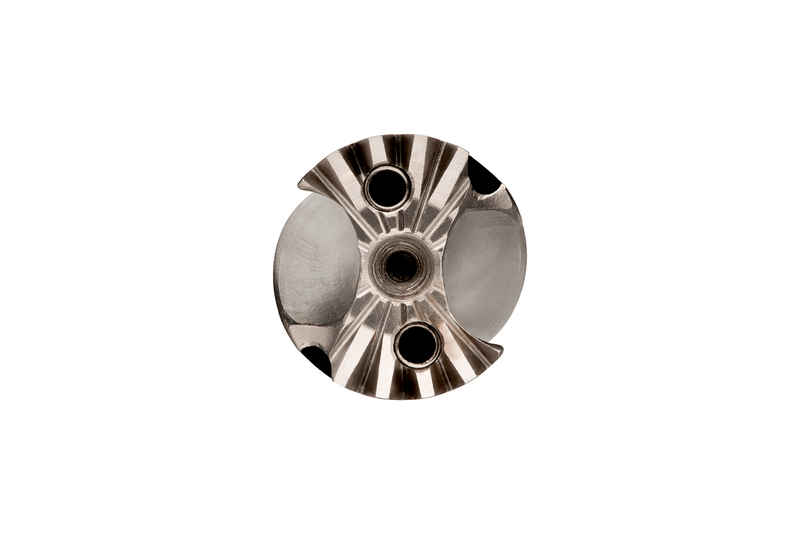

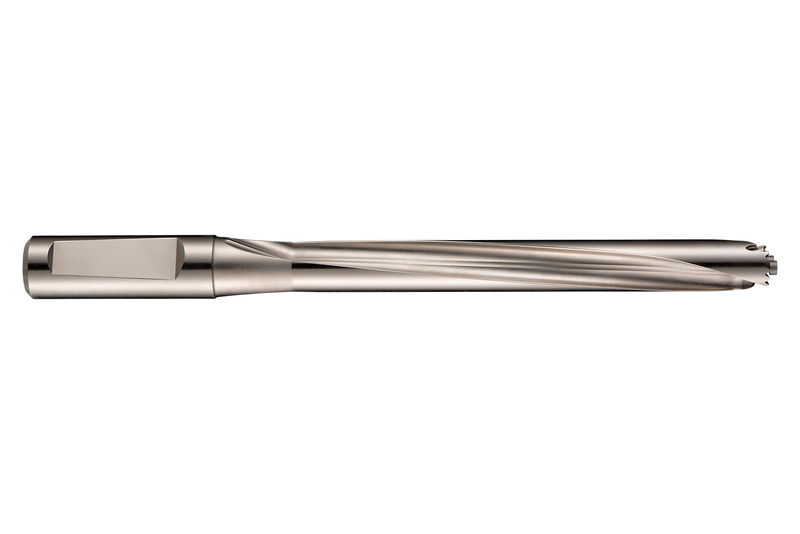

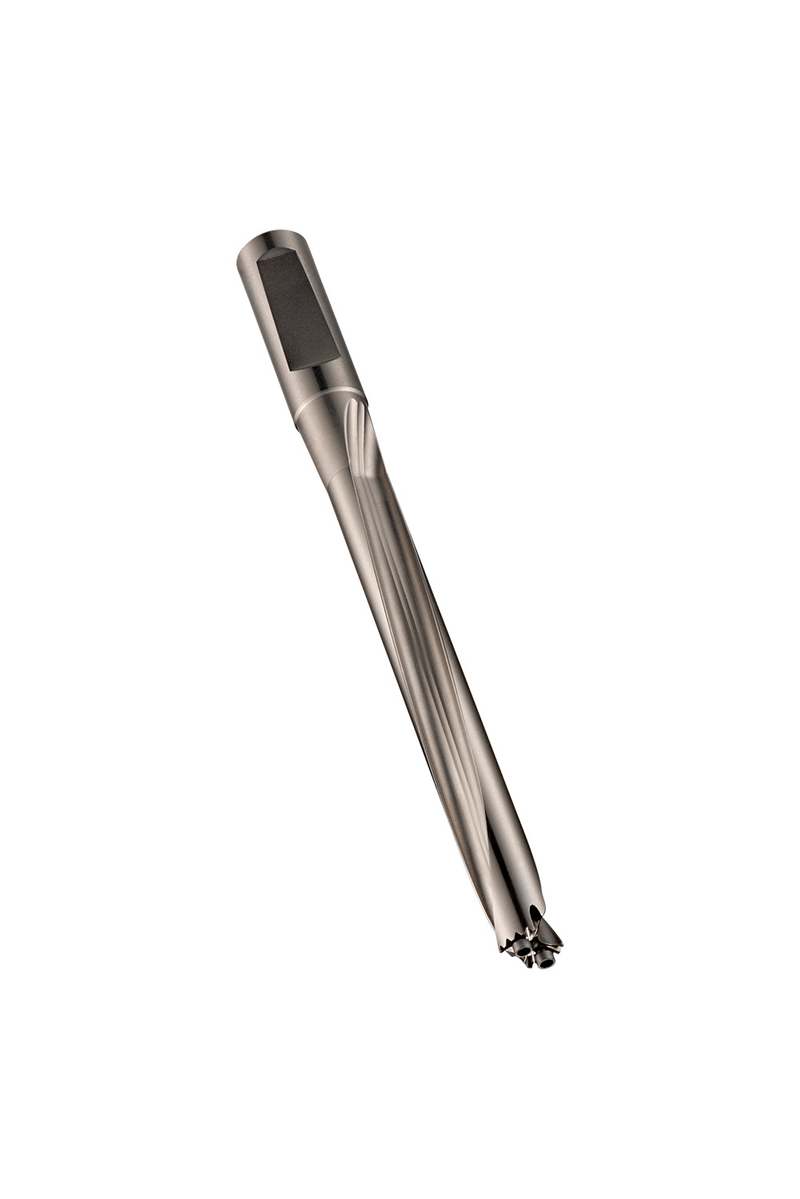

Corps de foret à têtes interchangeables HYDRA avec queue cylindrique DIN 6535HE à encoche pour vis de blocage, de 20,0mm de diamètre, avec une longueur totale de 264,5mm et une longueur de goujure de 175,5mm selon la norme DORMER pour un perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) de diamètre 19,6 à 20,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85820.0
GradePlaqué nickel
Product Number5988812
Product FamilyH858

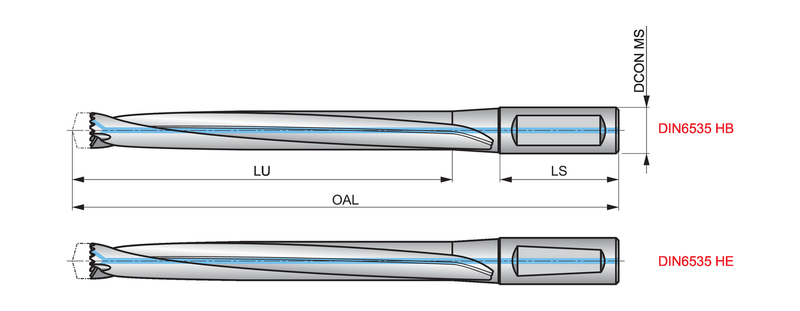

Dimensions
Overall Length — in (OAL)10.4134"
Overall Length — mm (OAL)264.5 mm
Length × Diameter Ratio8
Usable Length — in (LU)6.9094"
Usable Length — mm (LU)175.5 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number18729
EAN7320760018729
File Type Download
H85820.0 — 3D Model STP Download
H85820.0 — 2D Model DXF Download
H85820.0 — Line Drawing PDF Download
