UGC DOR5988821
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$842.00 CAD - $842.00 CAD
$842.00 CAD
$842.00 CAD - $842.00 CAD
$842.00 CAD

Vendu en lots de : 1

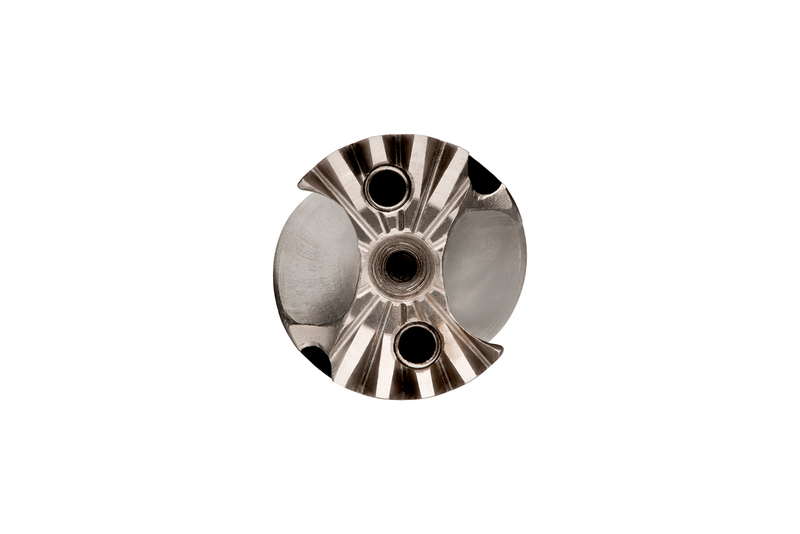

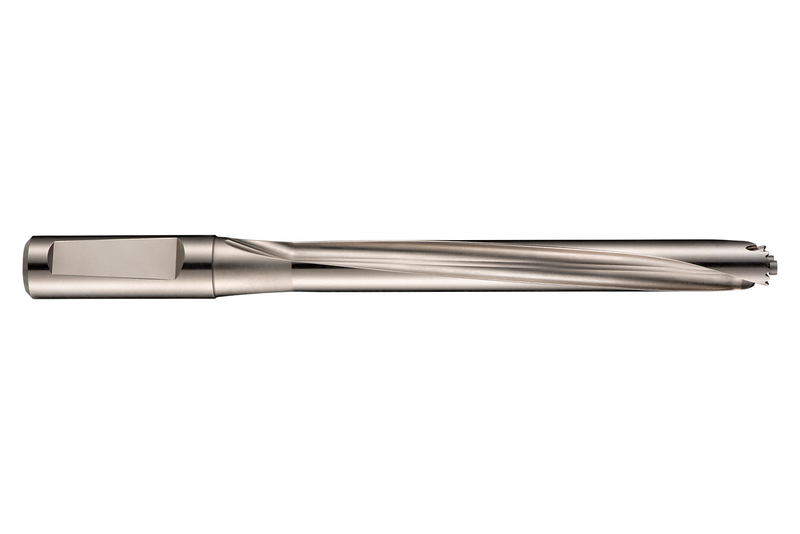

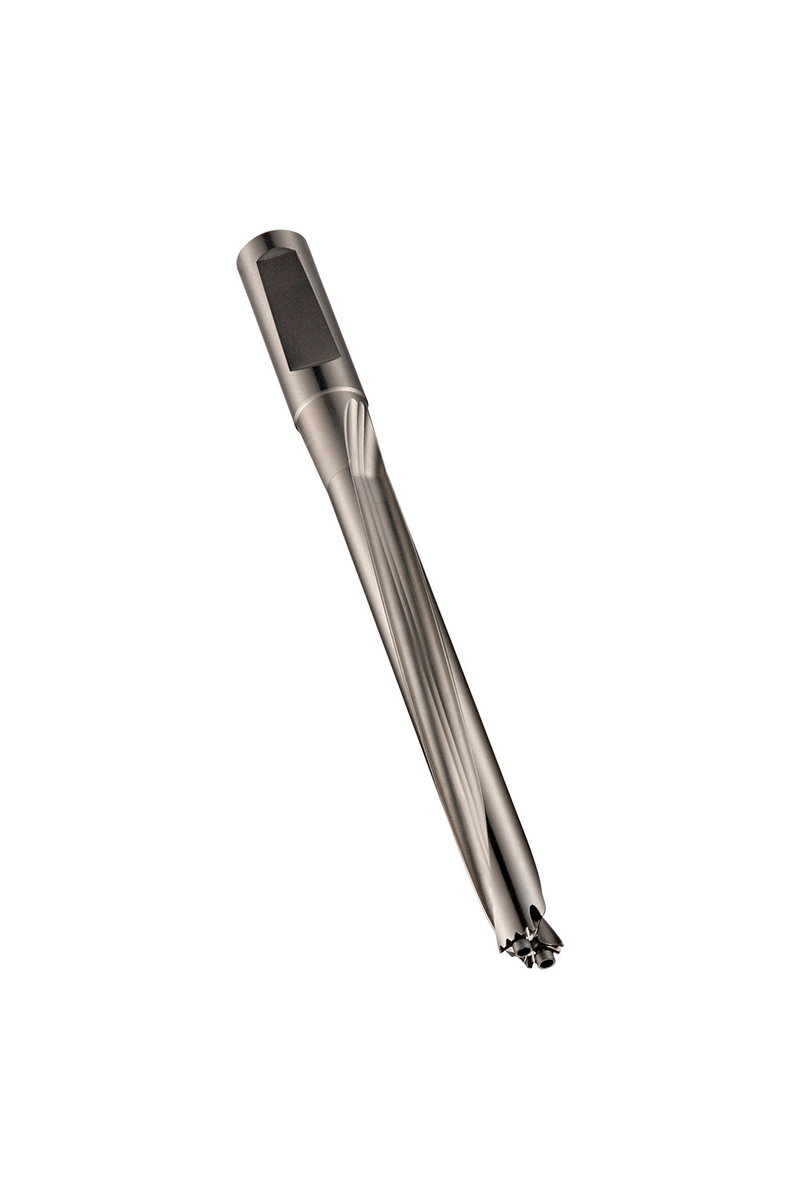

Corps de foret à têtes interchangeables HYDRA avec queue cylindrique DIN 6535HE à encoche pour vis de blocage, taille 22,0 mm avec une longueur totale de 271,1 mm et une longueur de goujure de 192,1 mm selon la norme DORMER pour le perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 21,83 à 22,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85822.0
GradePlaqué nickel
Product Number5988821
Product FamilyH858

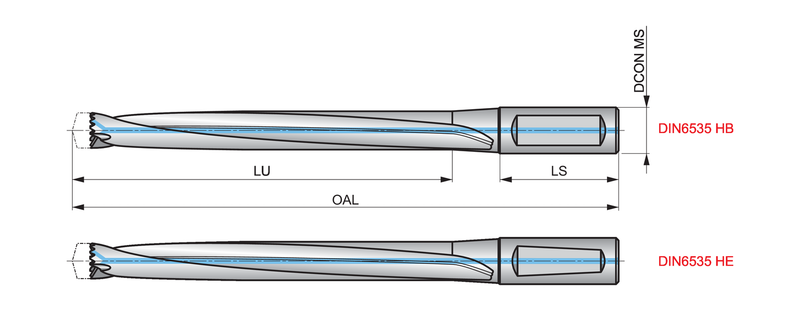

Dimensions
Overall Length — in (OAL)10.6732"
Overall Length — mm (OAL)271.1 mm
Length × Diameter Ratio8
Usable Length — in (LU)7.563"
Usable Length — mm (LU)192.1 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number18743
EAN7320760018743
File Type Download
H85822.0 — 3D Model STP Download
H85822.0 — 2D Model DXF Download
H85822.0 — Line Drawing PDF Download
