UGC DOR5988829
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$861.00 CAD - $861.00 CAD
$861.00 CAD
$861.00 CAD - $861.00 CAD
$861.00 CAD

Vendu en lots de : 1

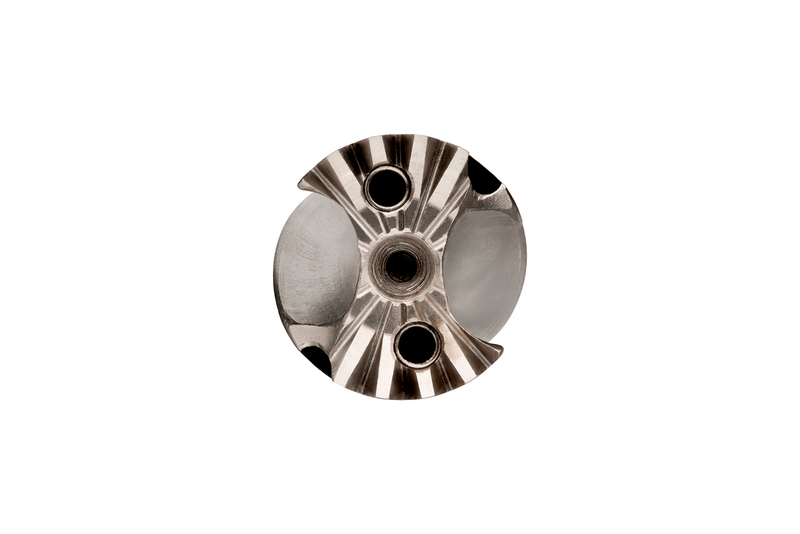

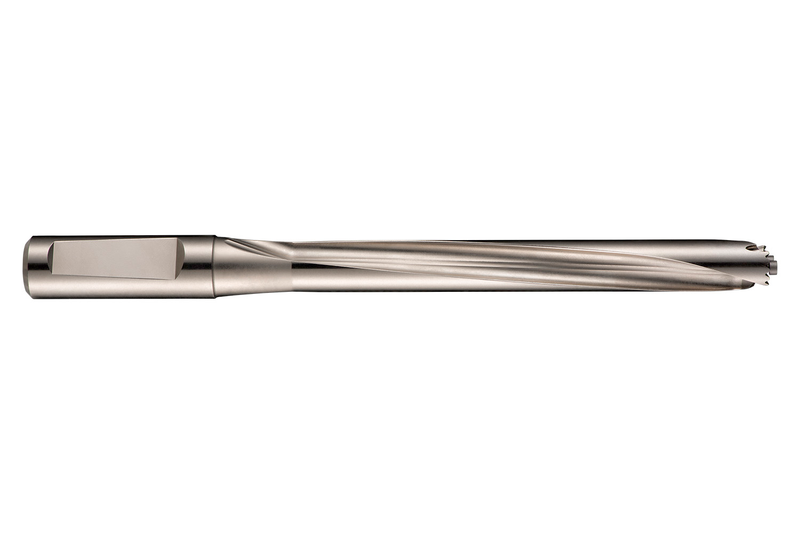

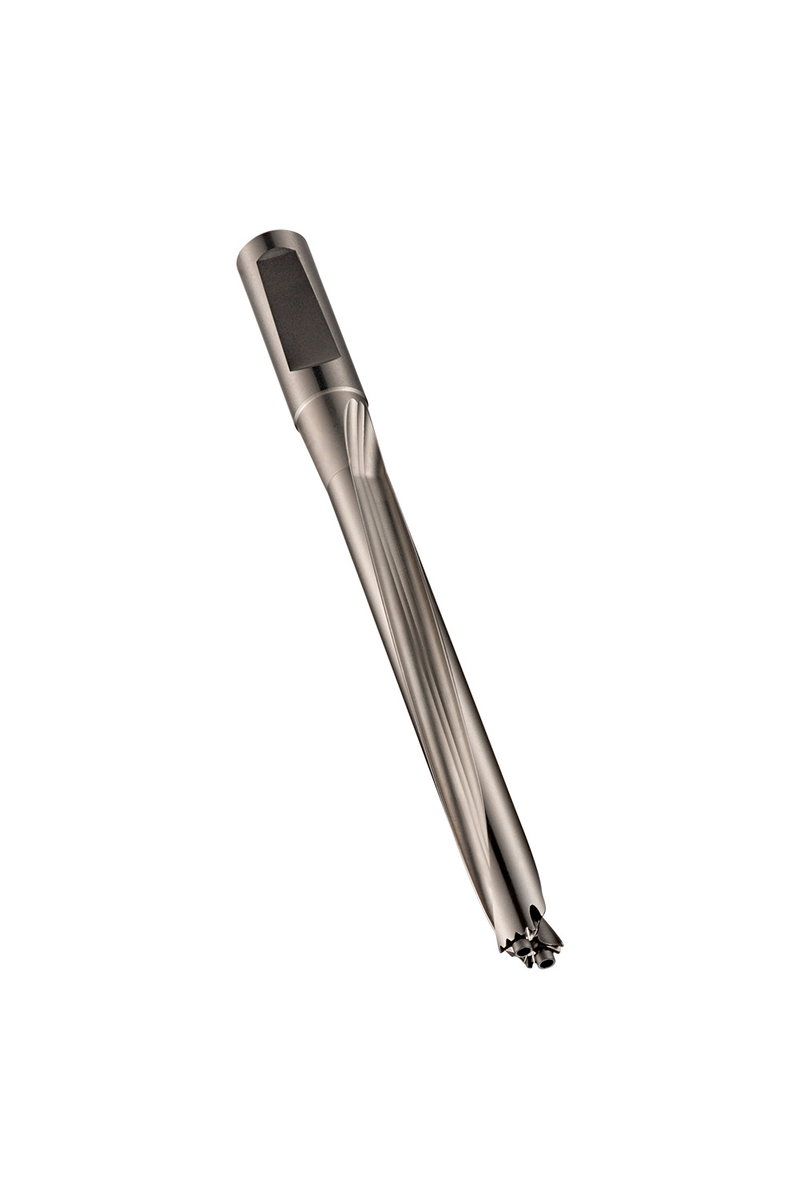

Corps de foret à tête interchangeable HYDRA avec queue cylindrique à méplat DIN 6535HE, taille 23,0 mm avec une longueur totale de 280,5 mm et une longueur de coupe de 200,5 mm selon la norme DORMER pour le perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 23 à 23,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85823.0
GradePlaqué nickel
Product Number5988829
Product FamilyH858

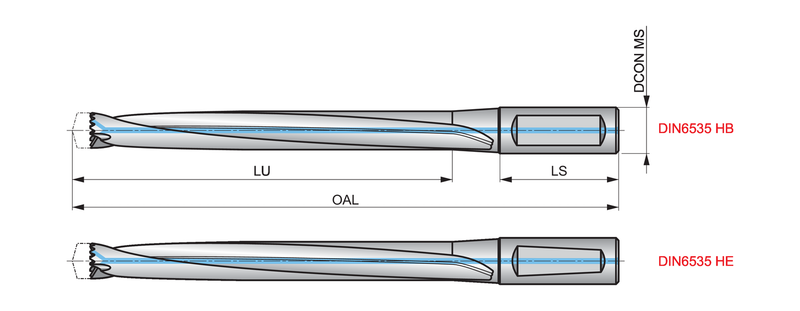

Dimensions
Overall Length — in (OAL)11.0433"
Overall Length — mm (OAL)280.5 mm
Length × Diameter Ratio8
Usable Length — in (LU)7.8937"
Usable Length — mm (LU)200.5 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number18750
EAN7320760018750
File Type Download
H85823.0 — 3D Model STP Download
H85823.0 — 2D Model DXF Download
H85823.0 — Line Drawing PDF Download
