UGC DOR5988832
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$877.00 CAD - $877.00 CAD
$877.00 CAD
$877.00 CAD - $877.00 CAD
$877.00 CAD

Vendu en lots de : 1

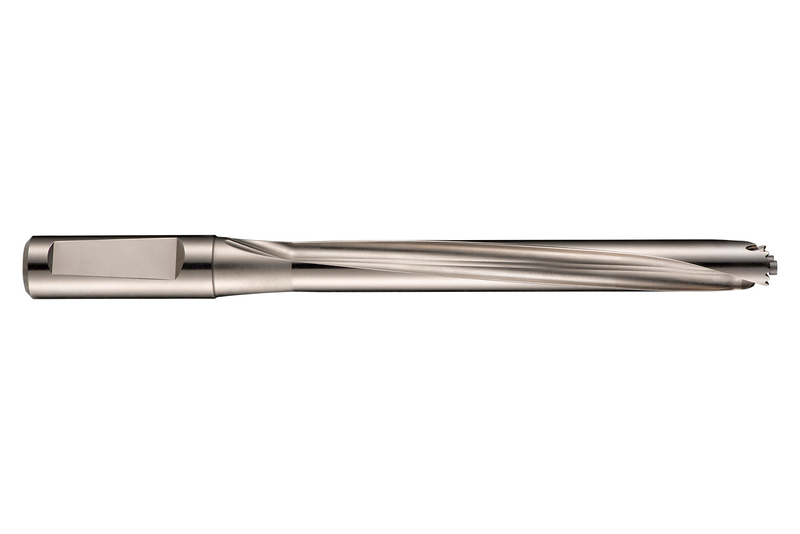

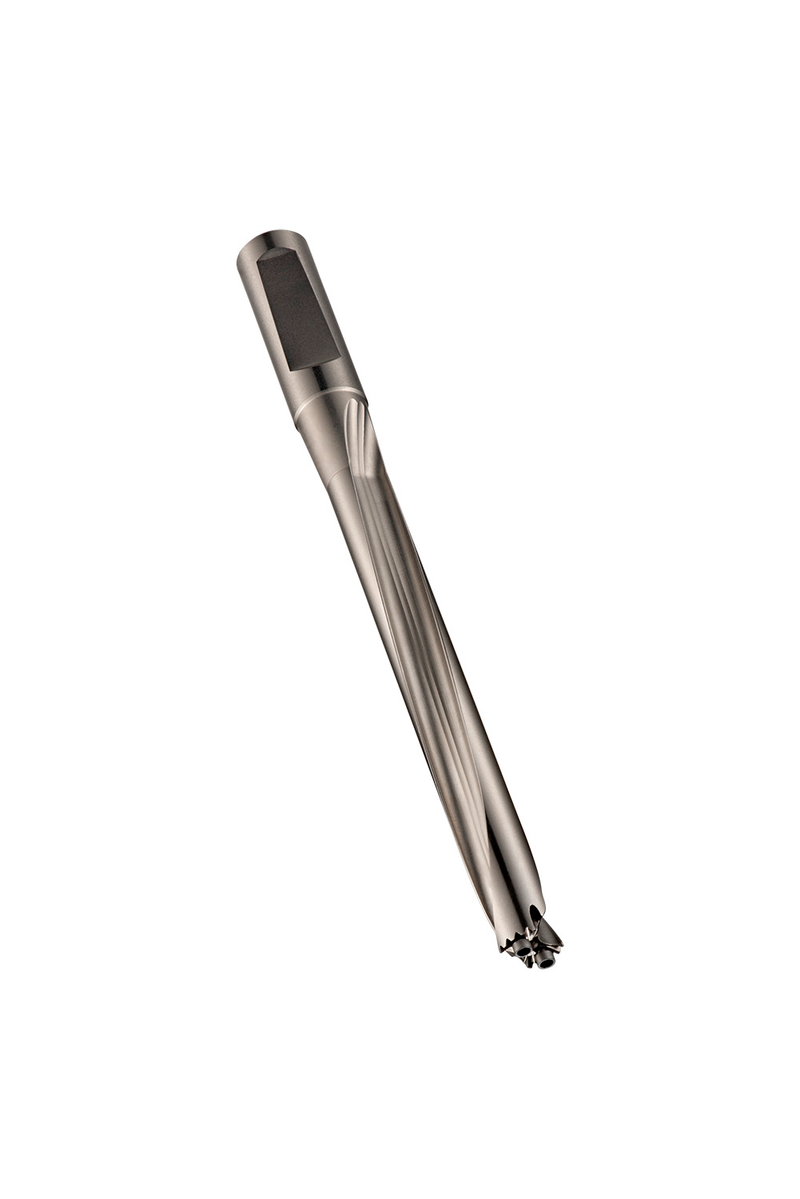

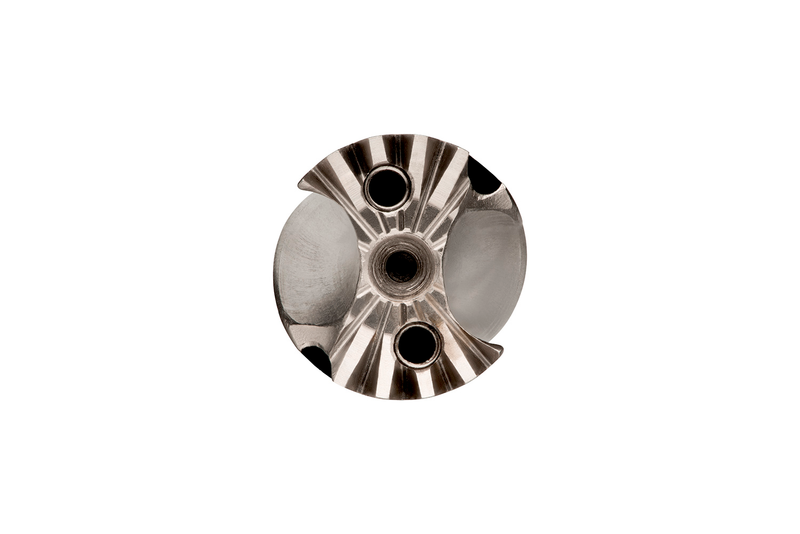

Corps de foret à têtes interchangeables HYDRA avec queue DIN 6535HE à encoche pour sifflet NC, taille 24,0 mm avec une longueur totale de 295,2 mm et une longueur de goujure de 208,2 mm selon la norme DORMER pour un perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 23,81 à 24,61 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85824.0
GradePlaqué nickel
Product Number5988832
Product FamilyH858

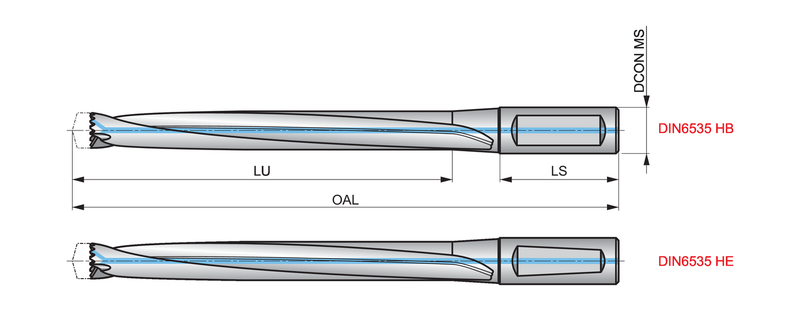

Dimensions
Overall Length — in (OAL)11.622"
Overall Length — mm (OAL)295.2 mm
Length × Diameter Ratio8
Usable Length — in (LU)8.1969"
Usable Length — mm (LU)208.2 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number18767
EAN7320760018767
File Type Download
H85824.0 — 3D Model STP Download
H85824.0 — 2D Model DXF Download
H85824.0 — Line Drawing PDF Download
