H85825.0
H85825.0
H85825.0
H85825.0

H85825.0

UGC DOR5988836
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$898.00 CAD - $898.00 CAD
$898.00 CAD
$898.00 CAD - $898.00 CAD
$898.00 CAD

Vendu en lots de : 1

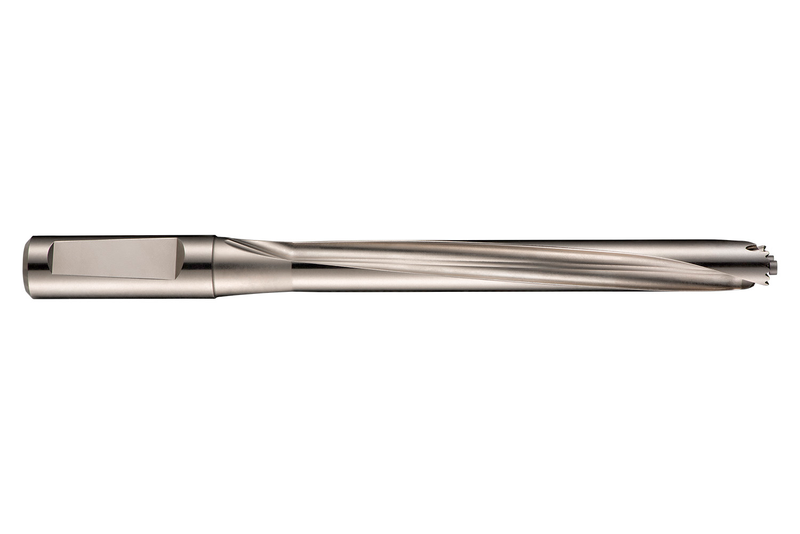

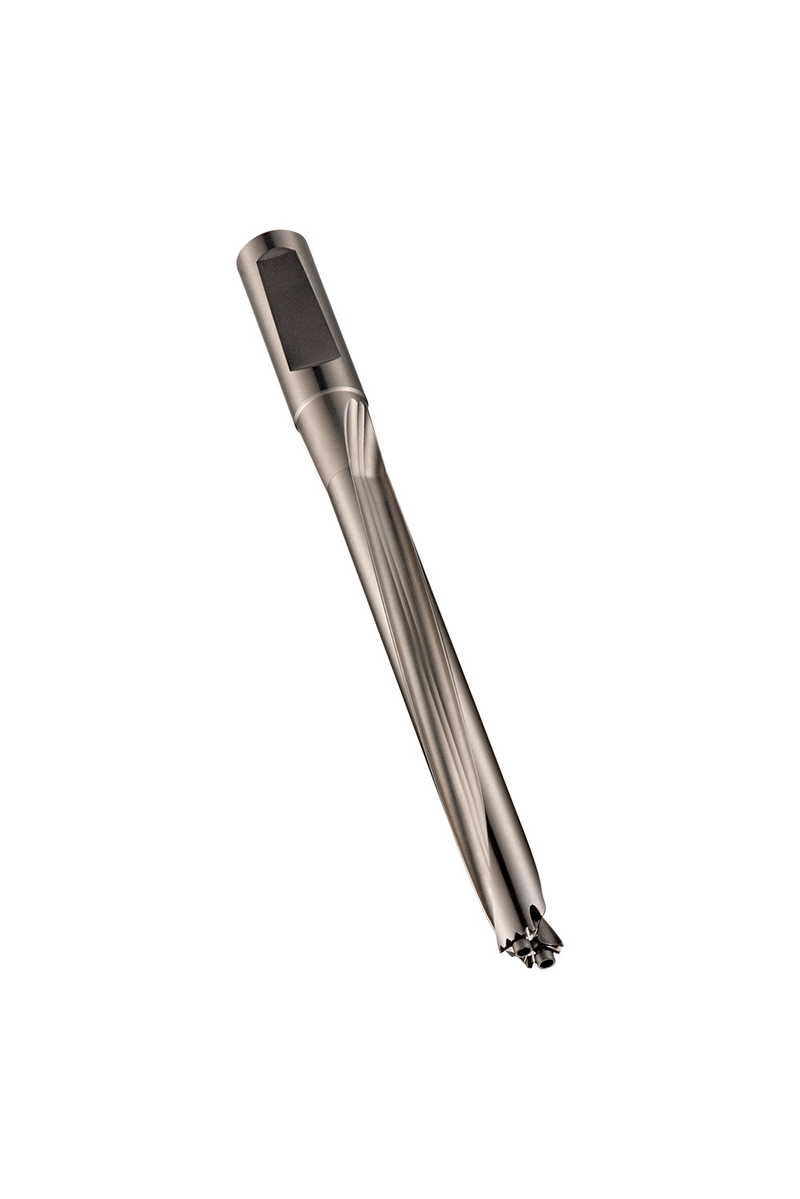

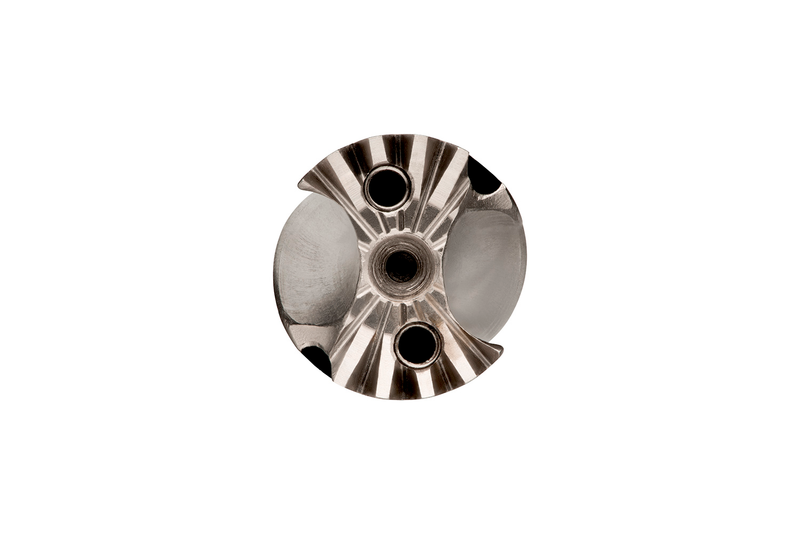

Corps de foret à tête interchangeable HYDRA avec queue cylindrique avec méplat DIN 6535HE, taille 25,0 mm avec une longueur totale de 300 mm et une longueur de goujure de 217 mm selon la norme DORMER pour le perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 25 jusqu'à 25,8 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85825.0
GradePlaqué nickel
Product Number5988836
Product FamilyH858

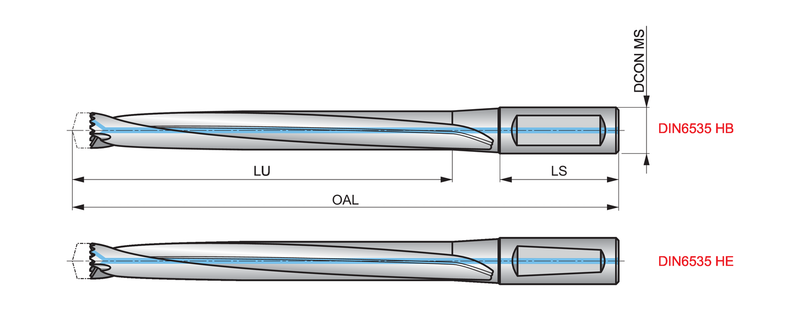

Dimensions
Overall Length — in (OAL)11.811"
Overall Length — mm (OAL)300.0 mm
Length × Diameter Ratio8
Usable Length — in (LU)8.5433"
Usable Length — mm (LU)217.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number18774
EAN7320760018774
File Type Download
H85825.0 — 3D Model STP Download
H85825.0 — 2D Model DXF Download
H85825.0 — Line Drawing PDF Download
