UGC DOR5988842
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$931.00 CAD - $931.00 CAD
$931.00 CAD
$931.00 CAD - $931.00 CAD
$931.00 CAD

Vendu en lots de : 1

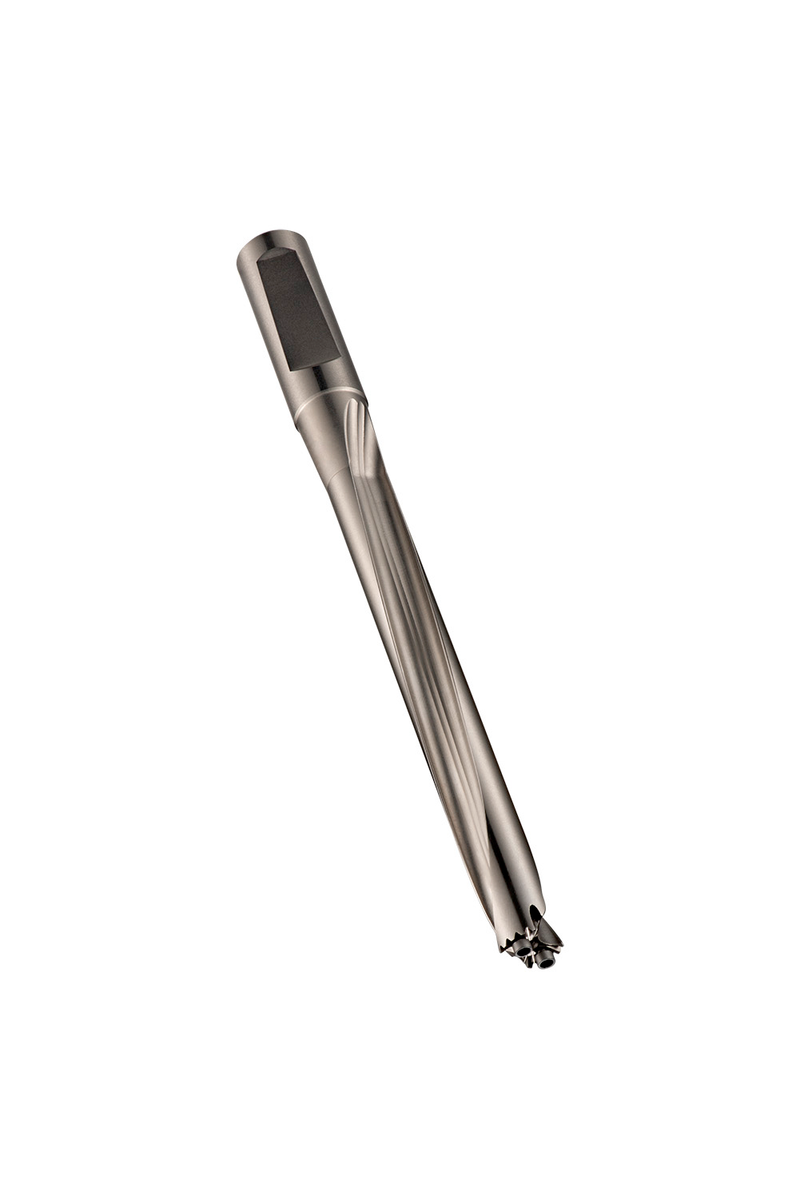

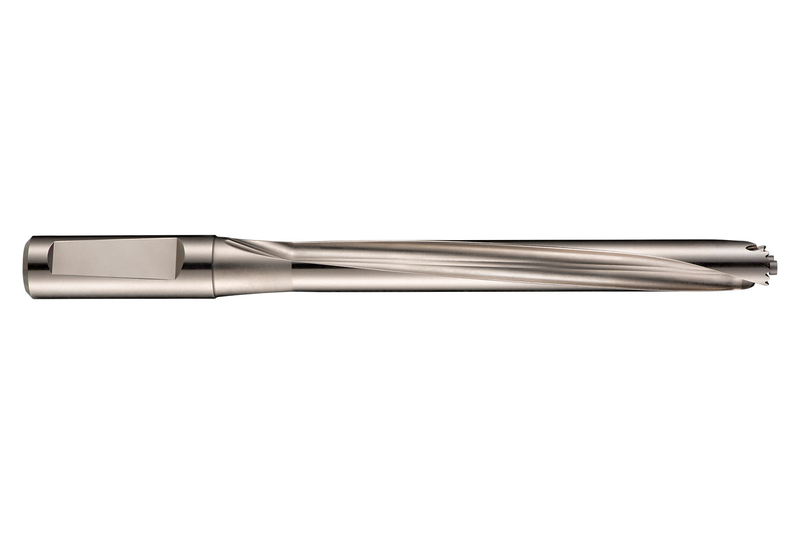

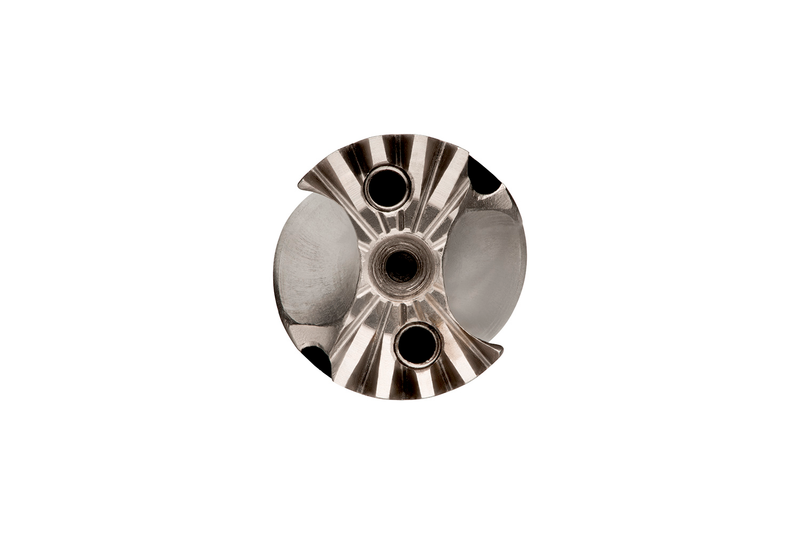

Corps de foret à têtes interchangeables HYDRA avec queue sifflet à encoche NC DIN 6535HE, taille 26,0mm avec une longueur totale de 310mm et une longueur utile de 225mm selon la norme DORMER pour le perçage 8xD avec des têtes HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) de diamètre 26 jusqu'à 26,59mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85826.0
GradePlaqué nickel
Product Number5988842
Product FamilyH858

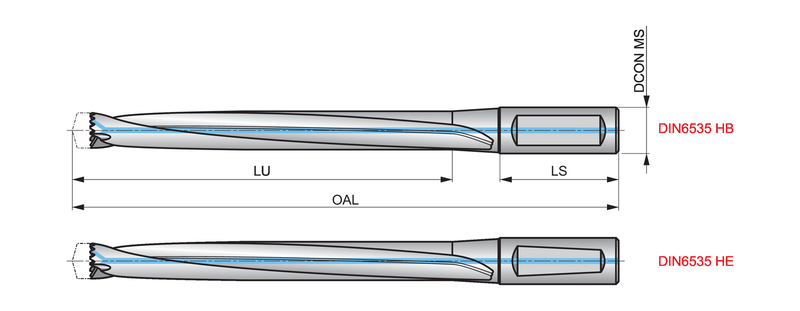

Dimensions
Overall Length — in (OAL)12.2047"
Overall Length — mm (OAL)310.0 mm
Length × Diameter Ratio8
Usable Length — in (LU)8.8583"
Usable Length — mm (LU)225.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number18781
EAN7320760018781
File Type Download
H85826.0 — 3D Model STP Download
H85826.0 — 2D Model DXF Download
H85826.0 — Line Drawing PDF Download
