UGC DOR5988846
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$931.00 CAD - $931.00 CAD
$931.00 CAD
$931.00 CAD - $931.00 CAD
$931.00 CAD

Vendu en lots de : 1

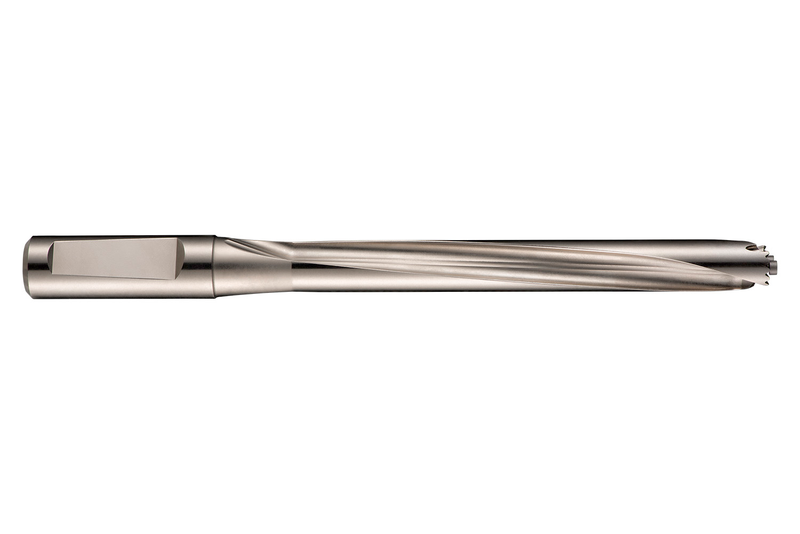

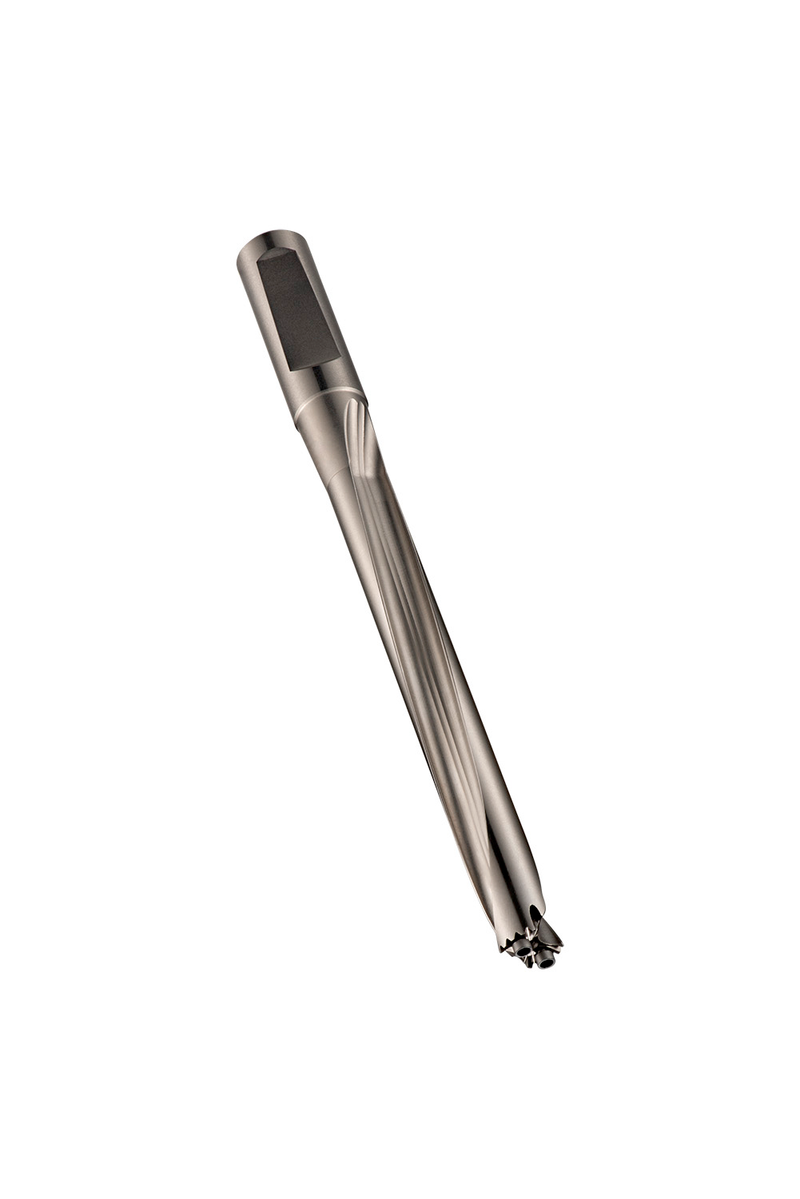

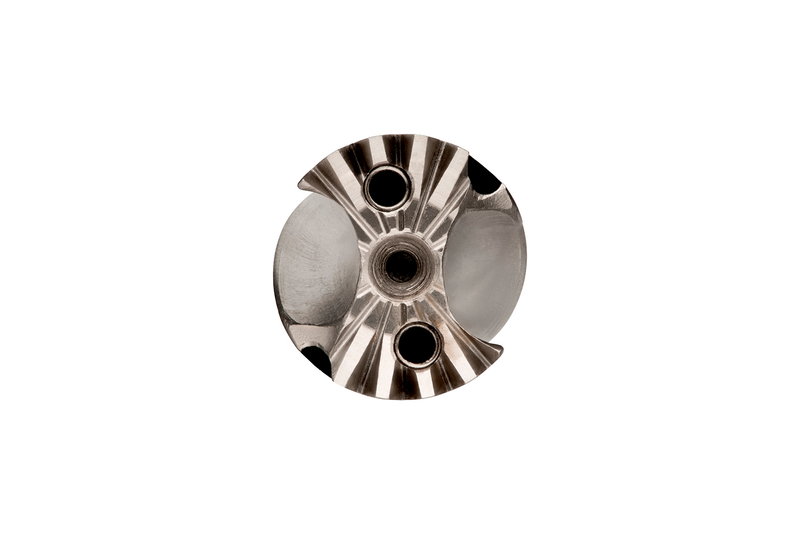

Corps de foret à tête interchangeable HYDRA avec queue cylindrique DIN 6535HE, diamètre 27,0mm, longueur totale 320mm et longueur de goujure 234mm selon la norme DORMER pour le perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) de diamètre 26,99 à 27,78mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85827.0
GradePlaqué nickel
Product Number5988846
Product FamilyH858

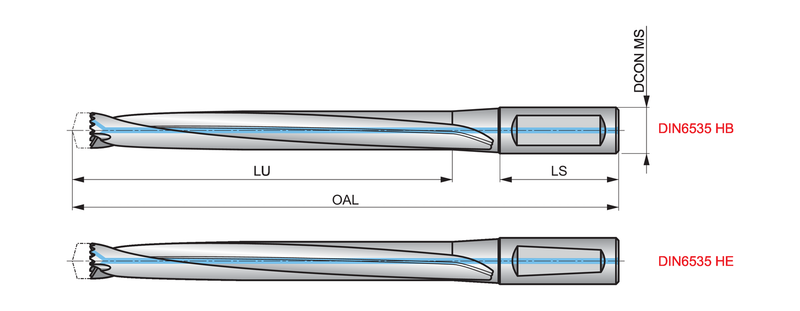

Dimensions
Overall Length — in (OAL)12.5984"
Overall Length — mm (OAL)320.0 mm
Length × Diameter Ratio8
Usable Length — in (LU)9.2126"
Usable Length — mm (LU)234.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number18798
EAN7320760018798
File Type Download
H85827.0 — 3D Model STP Download
H85827.0 — 2D Model DXF Download
H85827.0 — Line Drawing PDF Download
