H85828.0
H85828.0
H85828.0
H85828.0

H85828.0

UGC DOR5988849
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$946.00 CAD - $946.00 CAD
$946.00 CAD
$946.00 CAD - $946.00 CAD
$946.00 CAD

Vendu en lots de : 1

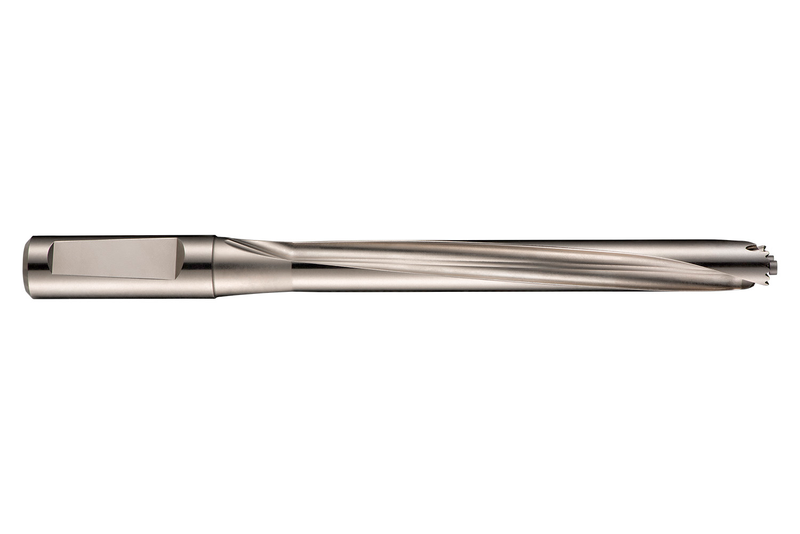

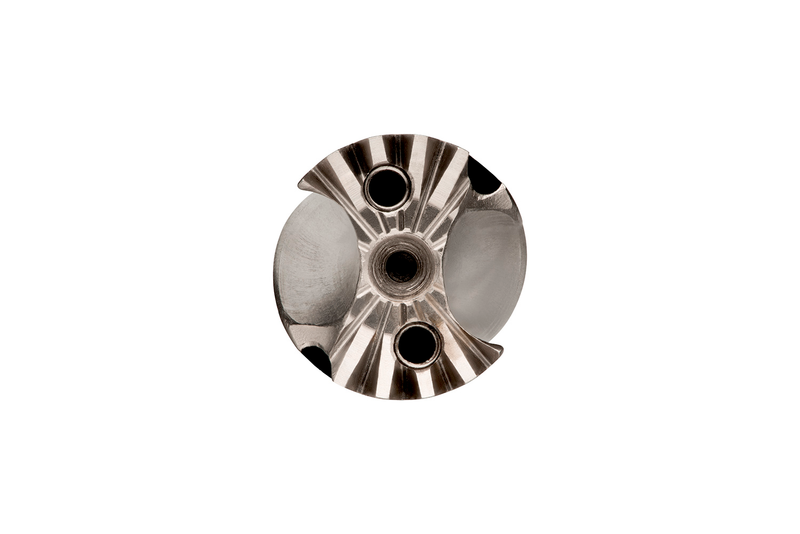

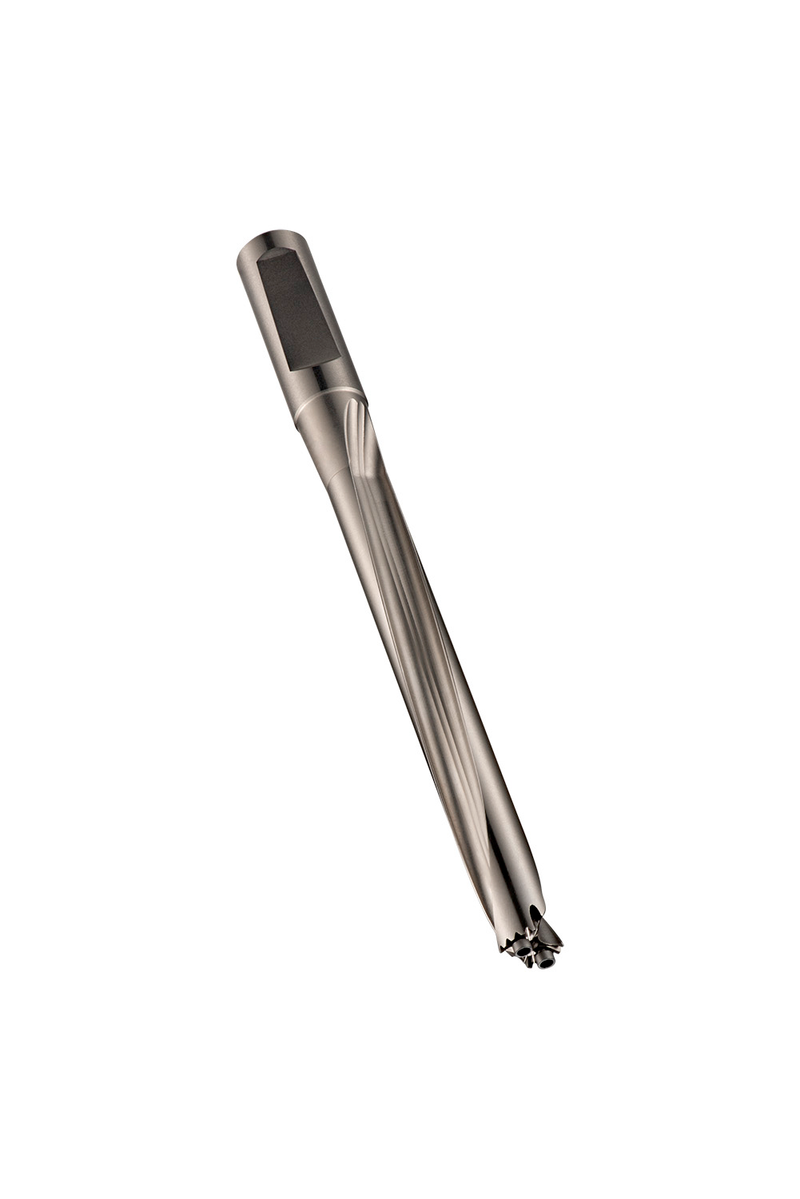

Corps de foret à tête interchangeable HYDRA avec queue cylindrique DIN 6535HE à encoche pour vis de pression, taille 28,0 mm, longueur totale 325 mm et longueur de goujure 242 mm selon la norme DORMER pour le perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 28 à 28,58 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85828.0
GradePlaqué nickel
Product Number5988849
Product FamilyH858

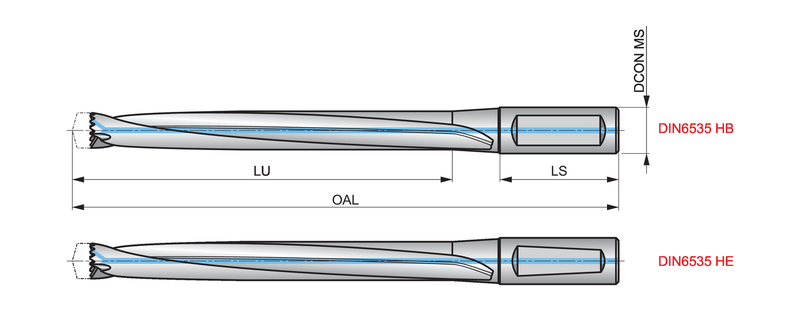

Dimensions
Overall Length — in (OAL)12.7953"
Overall Length — mm (OAL)325.0 mm
Length × Diameter Ratio8
Usable Length — in (LU)9.5276"
Usable Length — mm (LU)242.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number18804
EAN7320760018804
File Type Download
H85828.0 — 3D Model STP Download
H85828.0 — 2D Model DXF Download
H85828.0 — Line Drawing PDF Download
