UGC DOR5988852
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$965.00 CAD - $965.00 CAD
$965.00 CAD
$965.00 CAD - $965.00 CAD
$965.00 CAD

Vendu en lots de : 1

Corps de foret à tête interchangeable HYDRA avec queue cylindrique à méplat DIN 6535HE, diamètre 29,0 mm avec une longueur totale de 335 mm et une longueur de goujure de 251 mm selon la norme DORMER pour le perçage 8xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 28,97 à 29,77 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85829.0
GradePlaqué nickel
Product Number5988852
Product FamilyH858
Dimensions
Overall Length — in (OAL)13.189"
Overall Length — mm (OAL)335.0 mm
Length × Diameter Ratio8
Usable Length — in (LU)9.8819"
Usable Length — mm (LU)251.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number18811
EAN7320760018811
File Type Download
H85829.0 — 3D Model STP Download
H85829.0 — 2D Model DXF Download

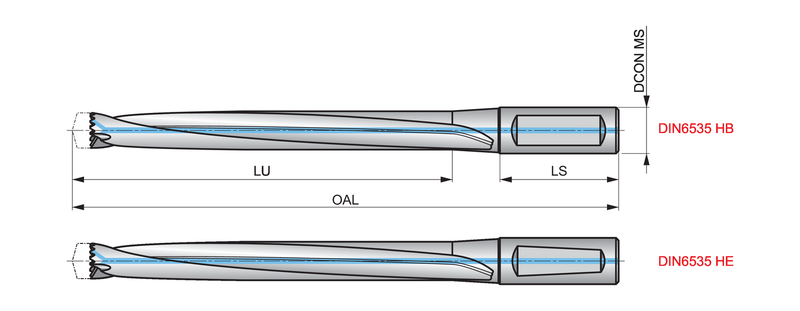

H85829.0 — Line Drawing PDF Download
