H85830.0
H85830.0
H85830.0
H85830.0

H85830.0

UGC DOR5988859
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$985.00 CAD - $985.00 CAD
$985.00 CAD
$985.00 CAD - $985.00 CAD
$985.00 CAD

Vendu en lots de : 1

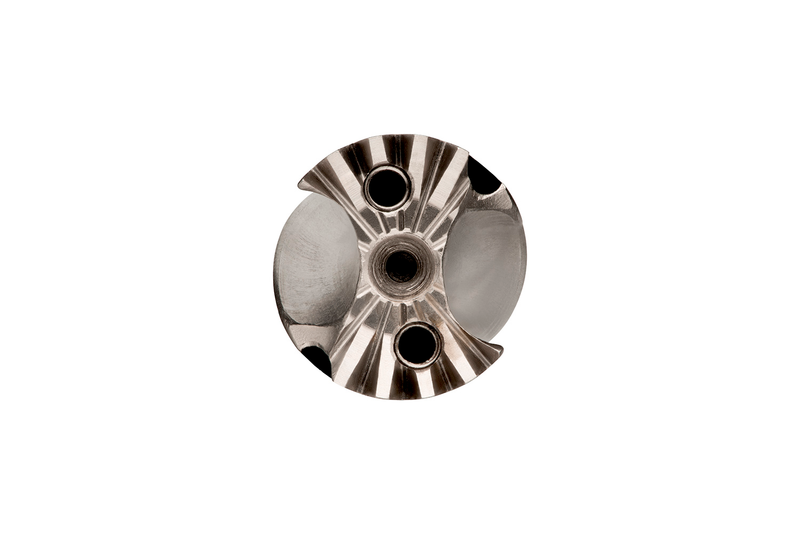

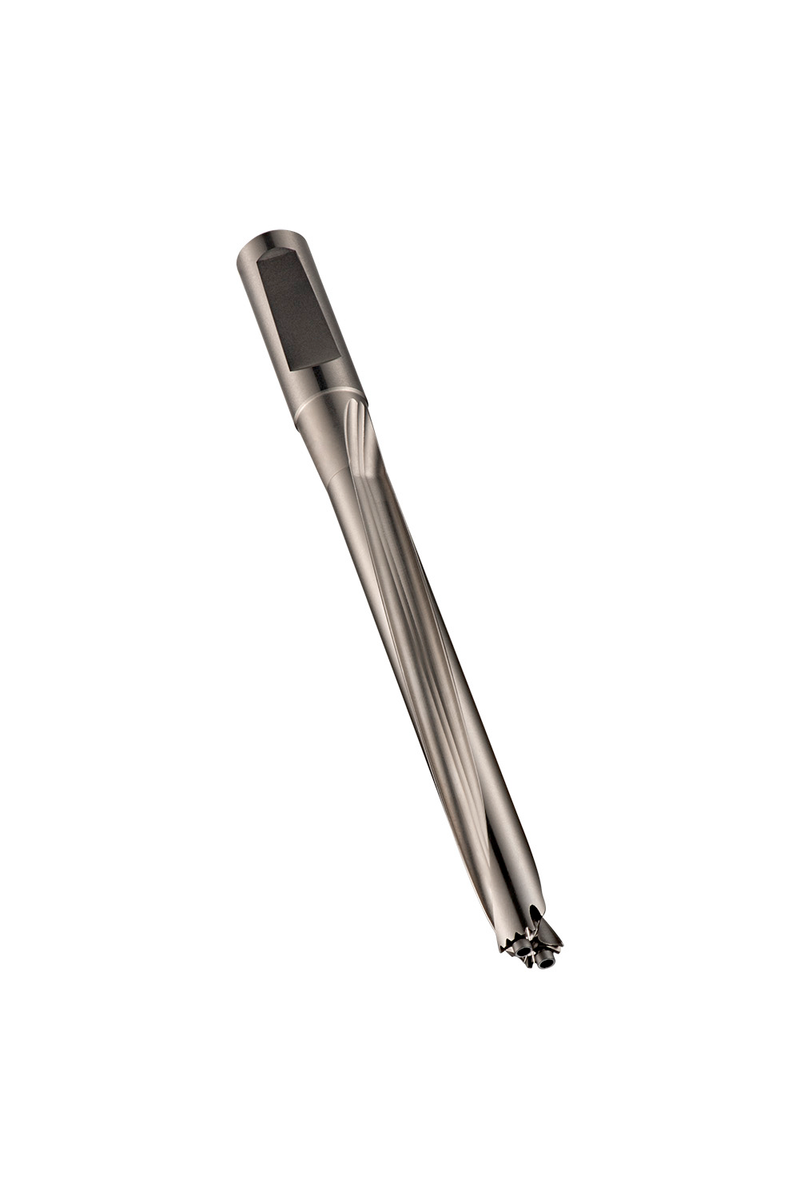

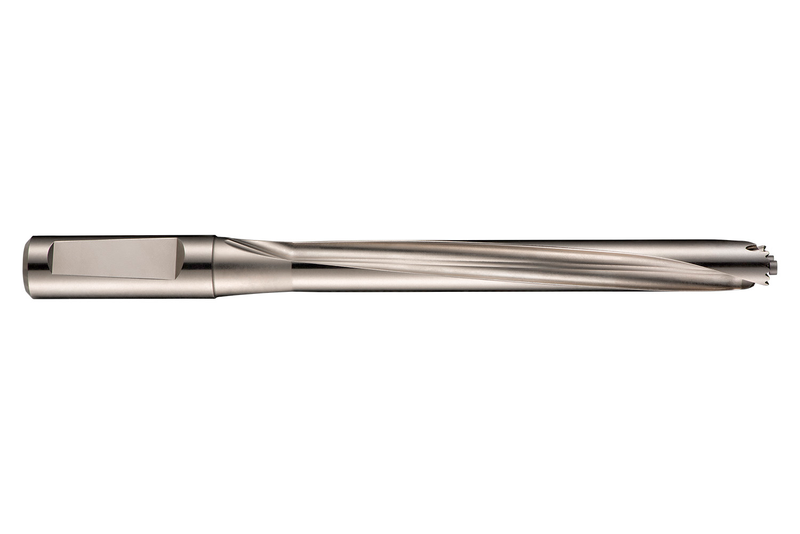

Corps de foret à têtes interchangeables HYDRA avec queue cylindrique DIN 6535HE à encoche pour vis de blocage, de diamètre 30,0 mm, longueur totale 345 mm et longueur utile 259 mm selon la norme DORMER pour perçage 8xD avec têtes HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) de diamètre 30 à 30,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85830.0
GradePlaqué nickel
Product Number5988859
Product FamilyH858

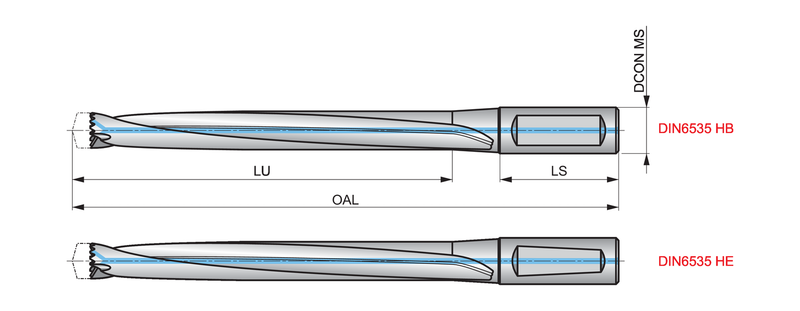

Dimensions
Overall Length — in (OAL)13.5827"
Overall Length — mm (OAL)345.0 mm
Length × Diameter Ratio8
Usable Length — in (LU)10.1969"
Usable Length — mm (LU)259.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number18828
EAN7320760018828
File Type Download
H85830.0 — 3D Model STP Download
H85830.0 — 2D Model DXF Download
H85830.0 — Line Drawing PDF Download
