Tête de forage remplaçable haute performance HYDRA P, diamètre 27 mm selon la norme DORMER avec une pointe divisée modifiée à 4 facettes de 140°, en carbure monobloc avec revêtement Ti-phon pour le perçage de l'acier en combinaison avec un corps HYDRA de taille 27 mm ou 1,3/32", H853 pour jusqu'à 3xD, H855 pour jusqu'à 5xD ou H858 pour jusqu'à 8xD

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R95027.0
GradeTi-phon
Product Number5988861
Product FamilyR950
Dimensions

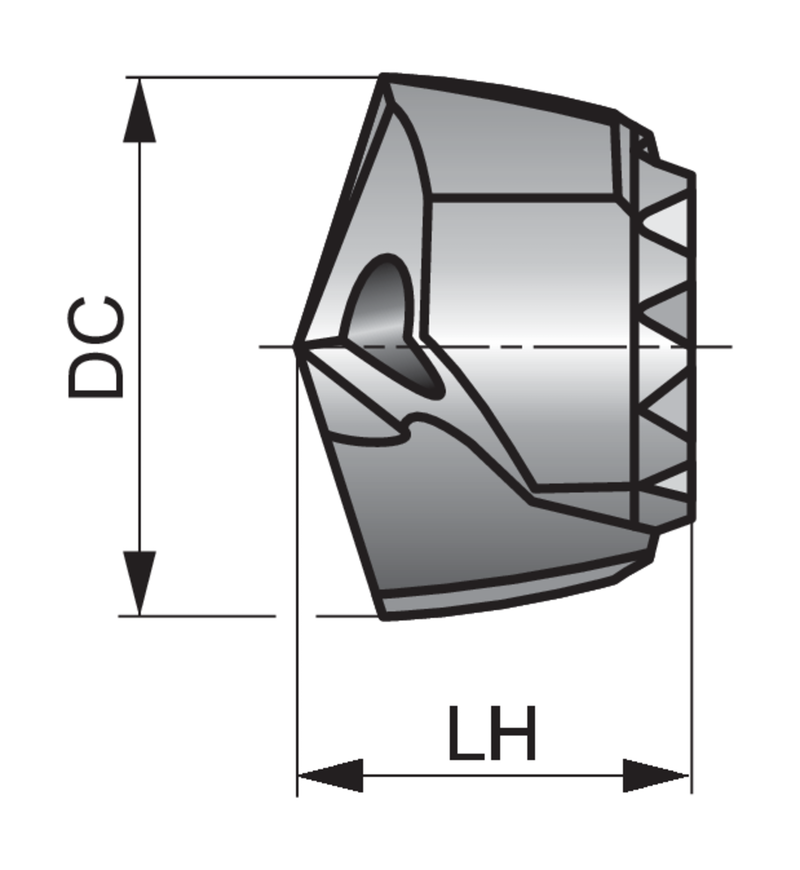

Cutting Diameter — in (DC)1.063"
Cutting Diameter — mm (DC)27.0 mm
Drill Point Angle (SIG)140°
Tool Information
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number13267
EAN7320760013267
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Usage principal
File Type Download
R95027.0 — 3D Model STP Download
R95027.0 — 2D Model DXF Download
R95027.0 — Line Drawing PDF Download
