H85517/32
H85517/32
H85517/32
H85517/32

H85517/32

UGC DOR5988878
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$528.00 CAD - $528.00 CAD
$528.00 CAD
$528.00 CAD - $528.00 CAD
$528.00 CAD

Vendu en lots de : 1

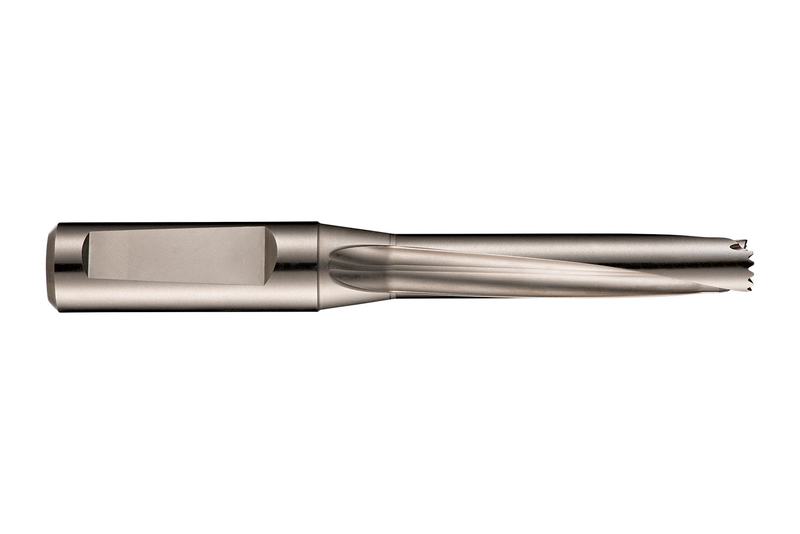

Corps de foret à têtes interchangeables HYDRA avec queue cylindrique à méplat DIN 6535HE NC, taille 17/32" avec une longueur totale de 140 mm et une longueur utile de 74 mm selon la norme DORMER pour le perçage 5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 0,5118 à 0,5313" (7/32)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85517/32
GradePlaqué nickel
Product Number5988878
Product FamilyH855
Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio5
Usable Length — in (LU)2.9134"
Usable Length — mm (LU)74.0 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Tool Information
ShankQueue cylindrique DIN 6535 HE / HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number34132
EAN7320760034132
File Type Download
H85517/32 — 3D Model STP Download
H85517/32 — 2D Model DXF Download
H85517/32 — Line Drawing PDF Download
