R9601.3/32
R9601.3/32
R9601.3/32

R9601.3/32

UGC DOR5988913
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$200.57 CAD - $200.57 CAD
$200.57 CAD
$200.57 CAD - $200.57 CAD
$200.57 CAD

Vendu en lots de : 1

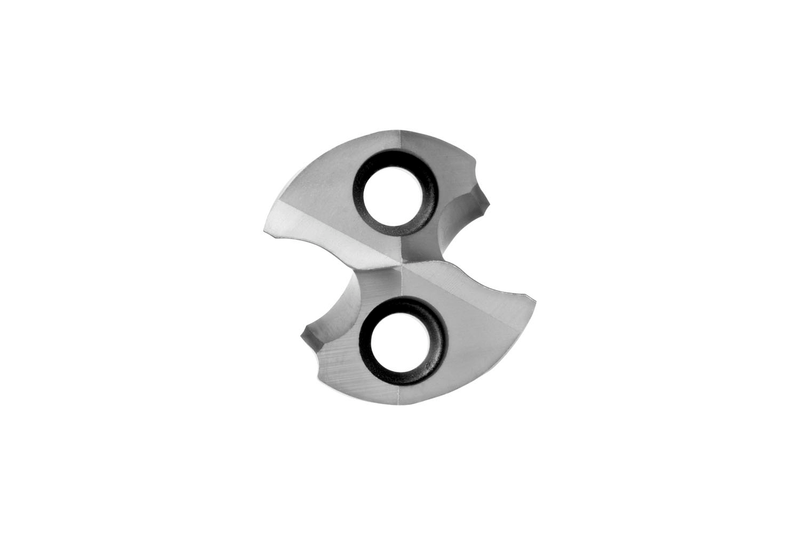

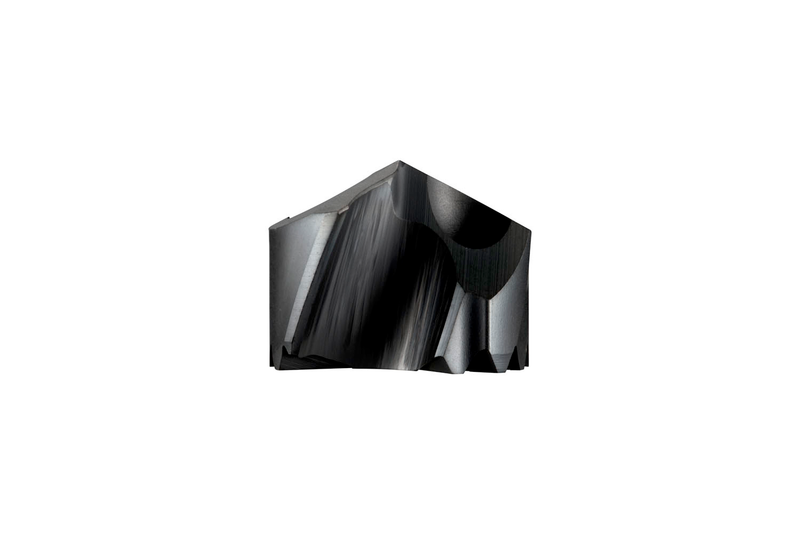

Tête de forage remplaçable haute performance HYDRA M, diamètre 1,0938" (1.3/32) selon la norme DORMER avec pointe fendue à 4 facettes modifiée de 140°, carbure monobloc avec revêtement Ti-phon pour le perçage de l'acier inoxydable en combinaison avec le corps HYDRA taille 1.3/32" ou 27mm, H853 jusqu'à 3xD, H855 jusqu'à 5xD ou H858 jusqu'à 8xD

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R9601.3/32
GradeTyphon
Product Number5988913
Product FamilyR960

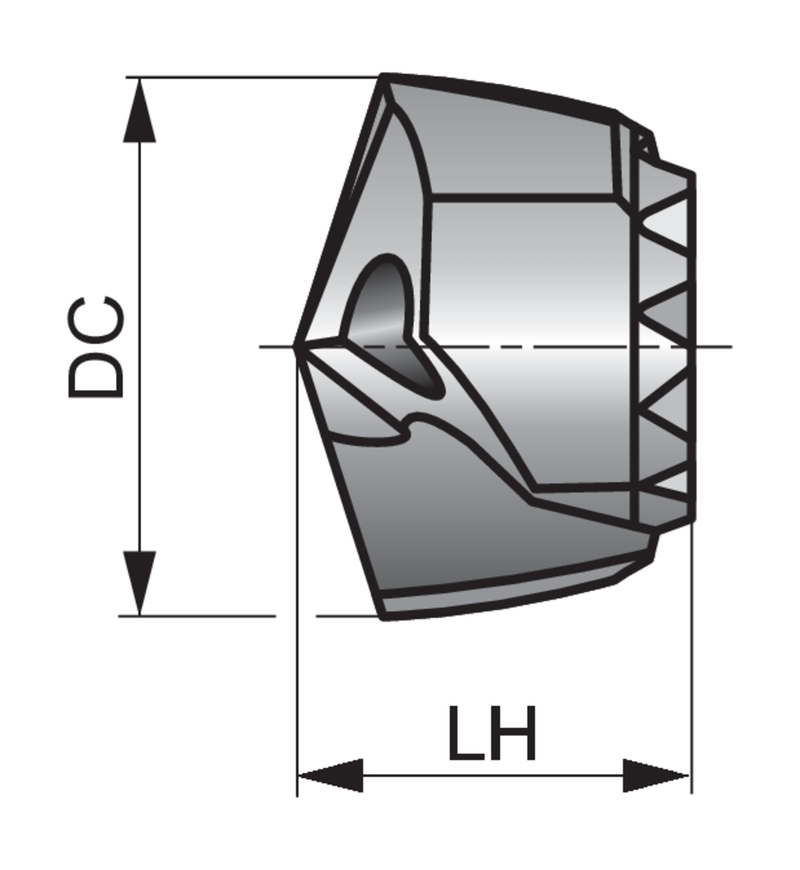

Dimensions
Cutting Diameter — in (DC)1.0938"
Cutting Diameter — mm (DC)27.78 mm
Cutting Diameter — Fractional1.3/32
Drill Point Angle (SIG)140°
Tool Information
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number19023
EAN7320760019023
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
R9601.3/32 — 3D Model STP Download
R9601.3/32 — 2D Model DXF Download
R9601.3/32 — Line Drawing PDF Download
