UGC PRE5995464
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.97 CAD - $6.97 CAD
$6.97 CAD
$6.97 CAD - $6.97 CAD
$6.97 CAD

Vendu en lots de : 12

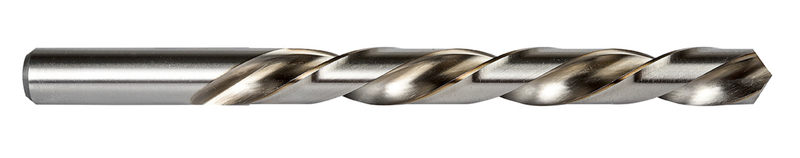

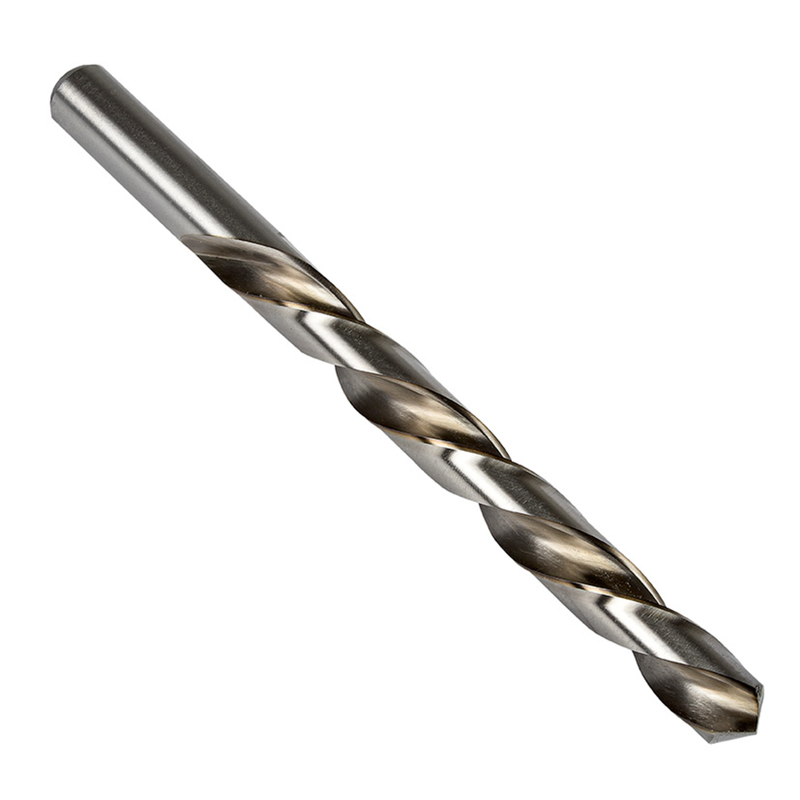

Foret court (jobber length) gauche à queue cylindrique, diamètre 0,1250" (1/8) avec une longueur totale de 2.3/4" et une longueur de goujure de 1.5/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)L101/8
GradeLumineux
Product Number5995464
Product FamilyL10
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Flute Length — in (LCF)1.625"
Flute Length — mm (LCF)41.28 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardANSI
Reference Numbers
EDP Number10908
File Type Download
L101/8 — 3D Model STP Download
L101/8 — Line Drawing PDF Download
