L1013/32
L1013/32
L1013/32

L1013/32

UGC PRE5995467
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.64 CAD - $30.64 CAD
$30.64 CAD
$30.64 CAD - $30.64 CAD
$30.64 CAD

Vendu en lots de : 6

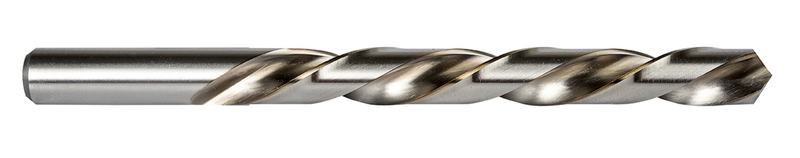

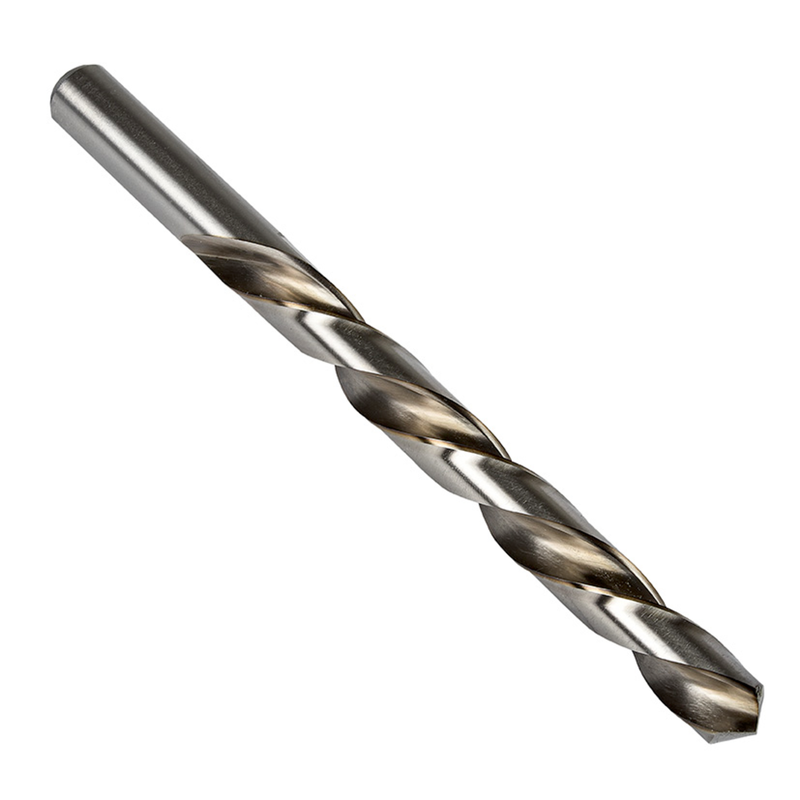

Foret hélicoïdal gauche de longueur normale à queue cylindrique, diamètre 0,4063" (13/32) avec une longueur totale de 5,1/4" et une longueur de goujure de 3,7/8" selon la norme ANSI avec un angle de pointe de 118°, en acier rapide (HSS) avec finition brillante pour perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)L1013/32
GradeLumineux
Product Number5995467
Product FamilyL10
Dimensions
Cutting Diameter — in (DC)0.4063"
Cutting Diameter — mm (DC)10.32 mm
Cutting Diameter — Fractional13/32
Overall Length — in (OAL)5.25"
Overall Length — mm (OAL)133.35 mm
Flute Length — in (LCF)3.875"
Flute Length — mm (LCF)98.43 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4063"
Connection Dia. — mm (DCON)10.32 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolGauche
StandardANSI
Reference Numbers
EDP Number10926
File Type Download
L1013/32 — 3D Model STP Download
L1013/32 — Line Drawing PDF Download
