L1015/32
L1015/32
L1015/32

L1015/32

UGC PRE5995469
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.80 CAD - $43.80 CAD
$43.80 CAD
$43.80 CAD - $43.80 CAD
$43.80 CAD

Vendu en lots de : 6

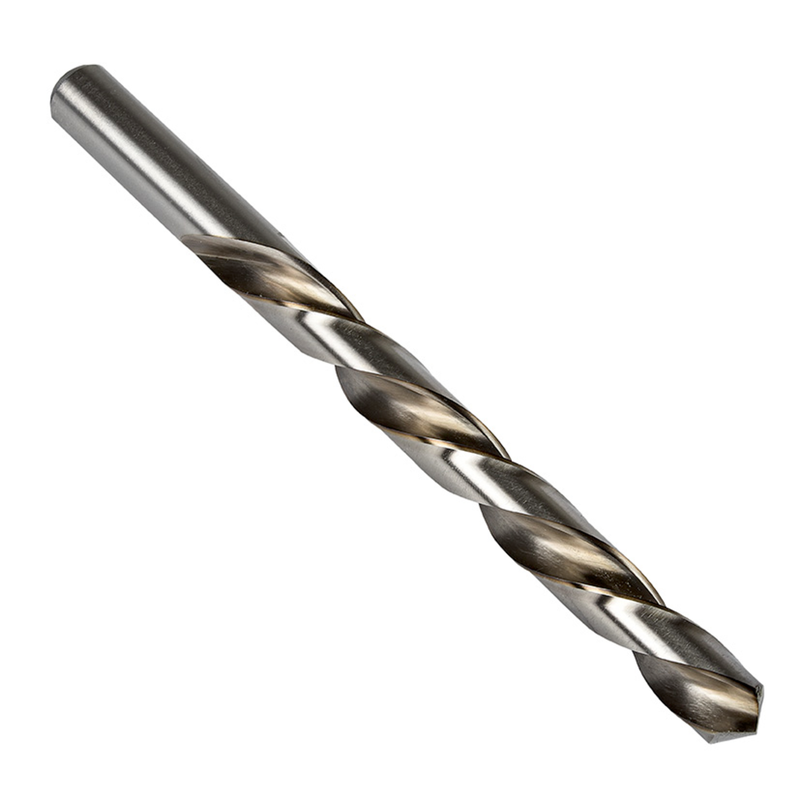

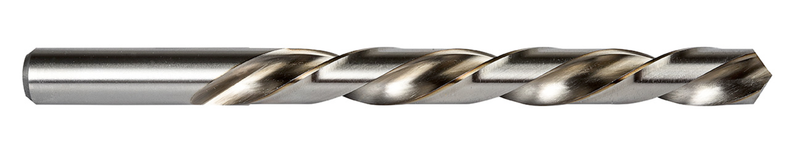

Forets courts à gauche à queue cylindrique, diamètre 0,4688" (15/32) avec une longueur totale de 5,3/4" et une longueur de goujure de 4,5/16" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage à 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)L1015/32
GradeLumineux
Product Number5995469
Product FamilyL10
Dimensions
Cutting Diameter — in (DC)0.4688"
Cutting Diameter — mm (DC)11.91 mm
Cutting Diameter — Fractional15/32
Overall Length — in (OAL)5.75"
Overall Length — mm (OAL)146.05 mm
Flute Length — in (LCF)4.3125"
Flute Length — mm (LCF)109.54 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4688"
Connection Dia. — mm (DCON)11.91 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardANSI
Reference Numbers
EDP Number10930
File Type Download
L1015/32 — 3D Model STP Download
L1015/32 — Line Drawing PDF Download
