L1015/64
L1015/64
L1015/64

L1015/64

UGC PRE5995470
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.53 CAD - $14.53 CAD
$14.53 CAD
$14.53 CAD - $14.53 CAD
$14.53 CAD

Vendu en lots de : 12

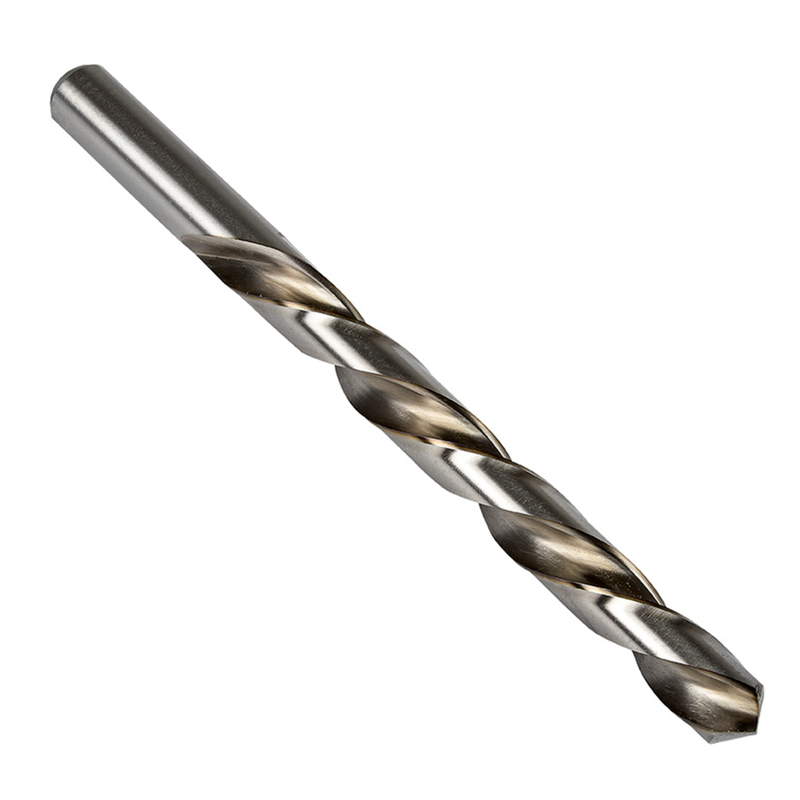

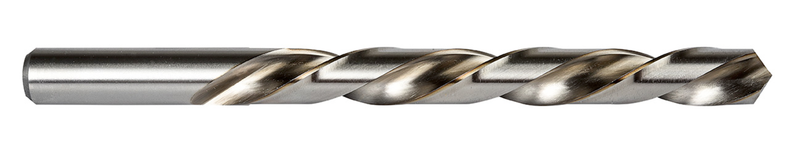

Foret hélicoïdal gauche de longueur Jobber, avec queue droite, diamètre 0,2344" (15/64) avec une longueur totale de 3,7/8" et une longueur de coupe de 2,5/8" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition brillante pour perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)L1015/64
GradeLumineux
Product Number5995470
Product FamilyL10
Dimensions
Cutting Diameter — in (DC)0.2344"
Cutting Diameter — mm (DC)5.95 mm
Cutting Diameter — Fractional15/64
Overall Length — in (OAL)3.875"
Overall Length — mm (OAL)98.43 mm
Flute Length — in (LCF)2.625"
Flute Length — mm (LCF)66.68 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2344"
Connection Dia. — mm (DCON)5.95 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardANSI
Reference Numbers
EDP Number10915
File Type Download
L1015/64 — 3D Model STP Download
L1015/64 — Line Drawing PDF Download
