UGC PRE5995478
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.60 CAD - $30.60 CAD
$30.60 CAD
$30.60 CAD - $30.60 CAD
$30.60 CAD

Vendu en lots de : 6

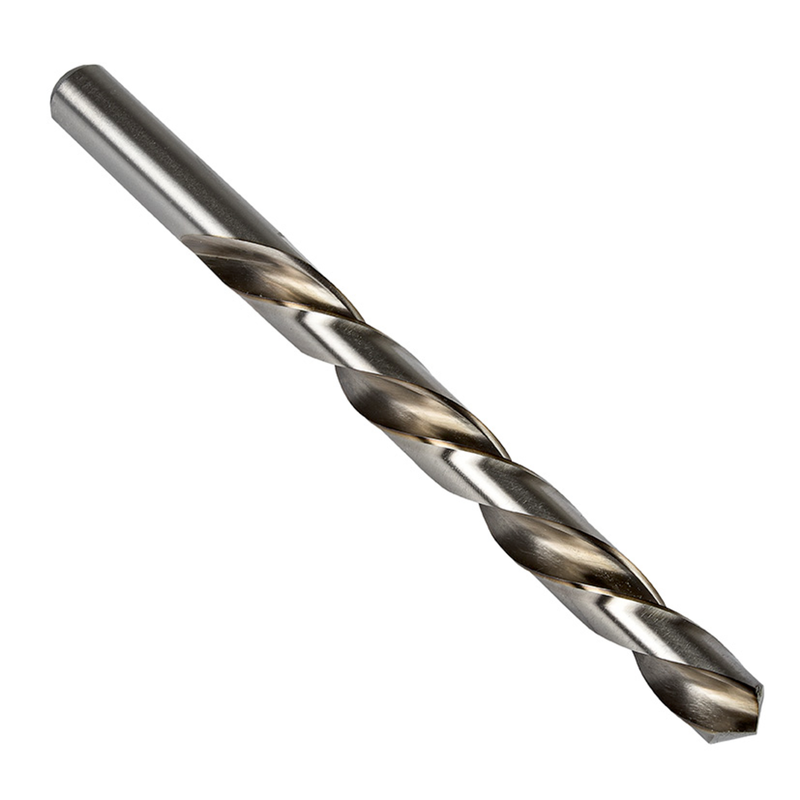

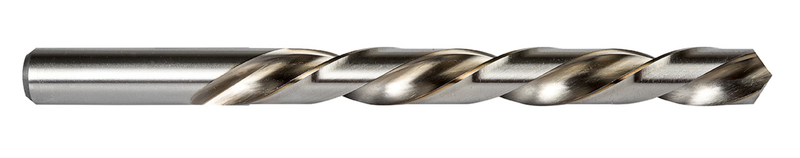

Foret de longueur jobber, à queue droite, main gauche, de diamètre 0.3906" (25/64) avec une longueur totale de 5.1/8" et une longueur de goujure de 3.3/4" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)L1025/64
GradeLumineux
Product Number5995478
Product FamilyL10
Dimensions
Cutting Diameter — in (DC)0.3906"
Cutting Diameter — mm (DC)9.92 mm
Cutting Diameter — Fractional25/64
Overall Length — in (OAL)5.125"
Overall Length — mm (OAL)130.18 mm
Flute Length — in (LCF)3.75"
Flute Length — mm (LCF)95.25 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3906"
Connection Dia. — mm (DCON)9.92 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardANSI
Reference Numbers
EDP Number10925
File Type Download
L1025/64 — 3D Model STP Download
L1025/64 — Line Drawing PDF Download
