L1029/64
L1029/64
L1029/64

L1029/64

UGC PRE5995482
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.51 CAD - $42.51 CAD
$42.51 CAD
$42.51 CAD - $42.51 CAD
$42.51 CAD

Vendu en lots de : 6

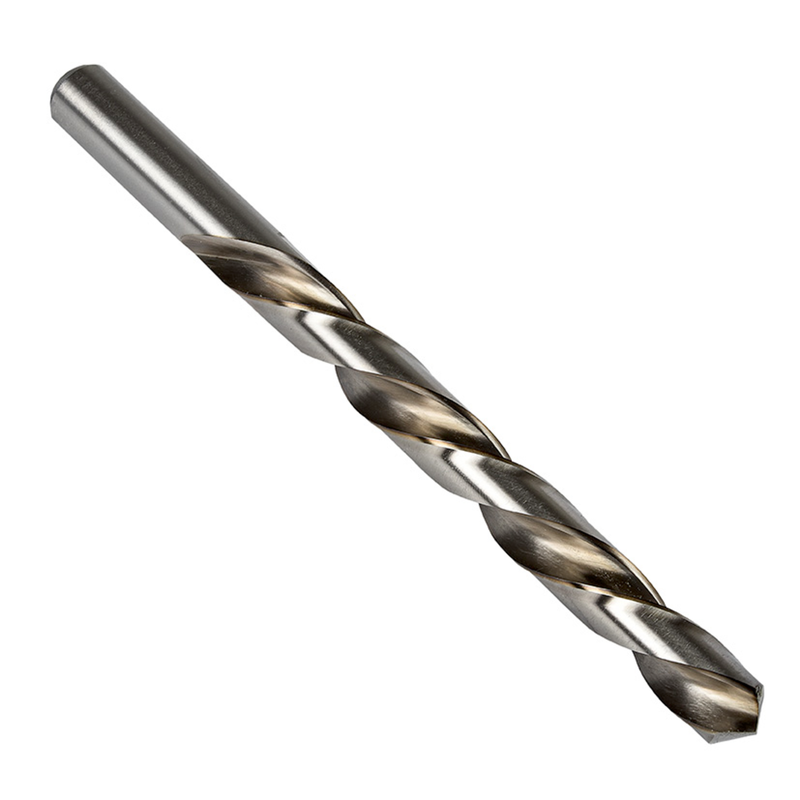

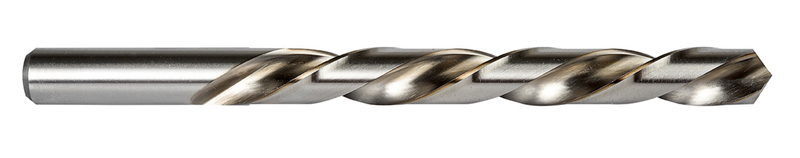

Foret hélicoïdal à queue cylindrique longueur jobber à gauche, diamètre 0,4531" (29/64) avec une longueur totale de 5,5/8" et une longueur de coupe de 4,3/16" selon la norme ANSI avec un angle de pointe de 118°, HSS finition brillante pour le perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)L1029/64
GradeLumineux
Product Number5995482
Product FamilyL10
Dimensions
Cutting Diameter — in (DC)0.4531"
Cutting Diameter — mm (DC)11.51 mm
Cutting Diameter — Fractional29/64
Overall Length — in (OAL)5.625"
Overall Length — mm (OAL)142.88 mm
Flute Length — in (LCF)4.1875"
Flute Length — mm (LCF)106.36 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4531"
Connection Dia. — mm (DCON)11.51 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardANSI
Reference Numbers
EDP Number10929
File Type Download
L1029/64 — 3D Model STP Download
L1029/64 — Line Drawing PDF Download
