L103/8
L103/8
L103/8

L103/8

UGC PRE5995492
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.89 CAD - $26.89 CAD
$26.89 CAD
$26.89 CAD - $26.89 CAD
$26.89 CAD

Vendu en lots de : 6

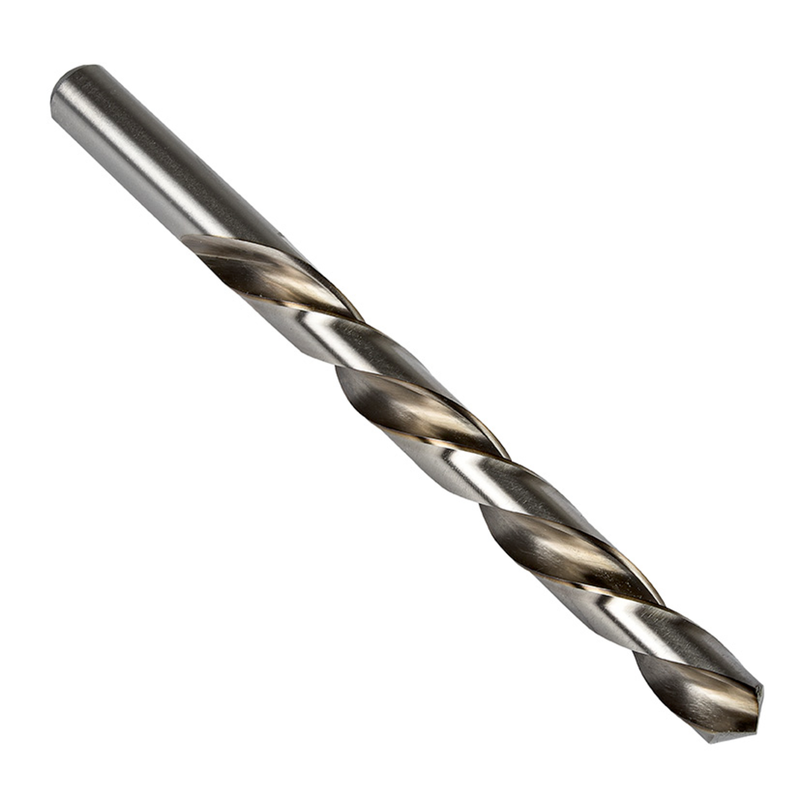

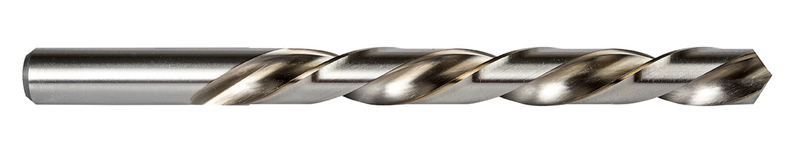

Foret jobber gauche à queue cylindrique, diamètre 0,3750" (3/8) avec une longueur totale de 5" et une longueur de coupe de 3.5/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)L103/8
GradeLumineux
Product Number5995492
Product FamilyL10
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)5.0"
Overall Length — mm (OAL)127.0 mm
Flute Length — in (LCF)3.625"
Flute Length — mm (LCF)92.08 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardANSI
Reference Numbers
EDP Number10924
File Type Download
L103/8 — 3D Model STP Download
L103/8 — Line Drawing PDF Download
