L105/16
L105/16
L105/16

L105/16

UGC PRE5995501
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.84 CAD - $17.84 CAD
$17.84 CAD
$17.84 CAD - $17.84 CAD
$17.84 CAD

Vendu en lots de : 6

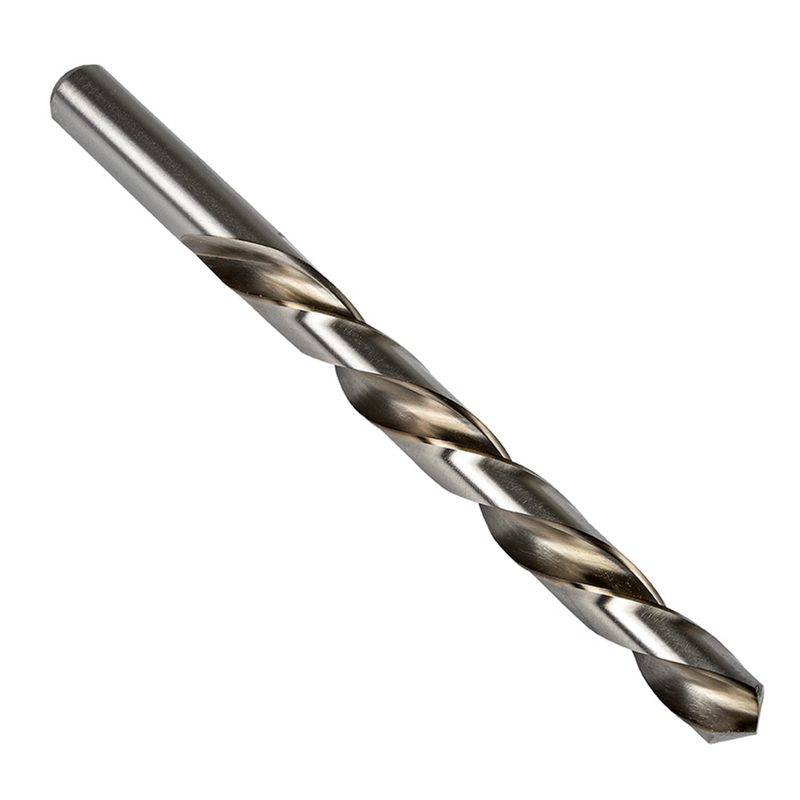

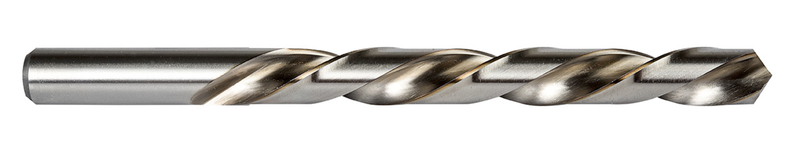

Foret à queue droite longueur jobber, à gauche, diamètre 0,3125" (5/16) avec une longueur totale de 4,1/2" et une longueur de coupe de 3,3/16" selon la norme ANSI avec un angle de pointe de 118°, HSS finition brillante pour un perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)L105/16
GradeLumineux
Product Number5995501
Product FamilyL10
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)4.5"
Overall Length — mm (OAL)114.3 mm
Flute Length — in (LCF)3.1875"
Flute Length — mm (LCF)80.96 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardANSI
Reference Numbers
EDP Number10920
File Type Download
L105/16 — 3D Model STP Download
L105/16 — Line Drawing PDF Download
