L105/32
L105/32
L105/32

L105/32

UGC PRE5995504
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.10 CAD - $8.10 CAD
$8.10 CAD
$8.10 CAD - $8.10 CAD
$8.10 CAD

Vendu en lots de : 12

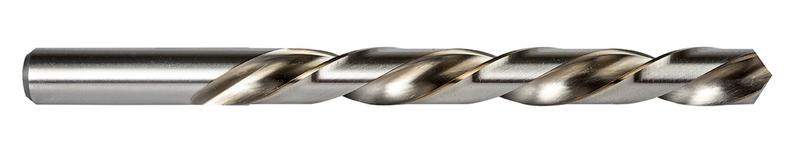

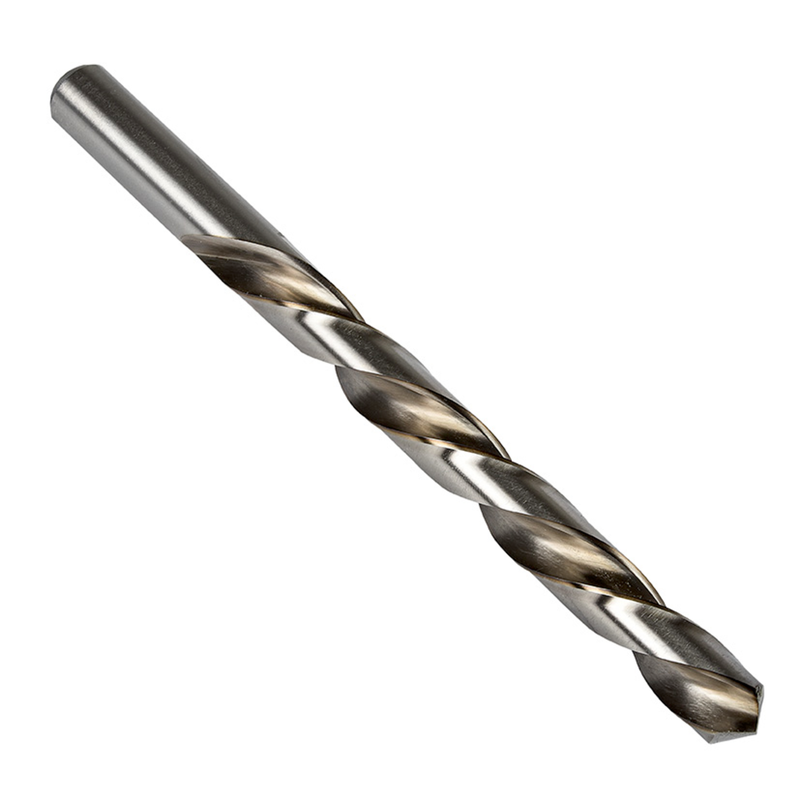

Foret hélicoïdal gauche de longueur normale avec queue cylindrique, diamètre 0,1563" (5/32) avec une longueur totale de 3.1/8" et une longueur de goujure de 2" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition brillante pour perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)L105/32
GradeLumineux
Product Number5995504
Product FamilyL10
Dimensions
Cutting Diameter — in (DC)0.1563"
Cutting Diameter — mm (DC)3.97 mm
Cutting Diameter — Fractional5/32
Overall Length — in (OAL)3.125"
Overall Length — mm (OAL)79.38 mm
Flute Length — in (LCF)2.0"
Flute Length — mm (LCF)50.8 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1563"
Connection Dia. — mm (DCON)3.97 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolGauche
StandardANSI
Reference Numbers
EDP Number10910
File Type Download
L105/32 — 3D Model STP Download
L105/32 — Line Drawing PDF Download
