L107/16
L107/16
L107/16

L107/16

UGC PRE5995511
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.04 CAD - $36.04 CAD
$36.04 CAD
$36.04 CAD - $36.04 CAD
$36.04 CAD

Vendu en lots de : 6

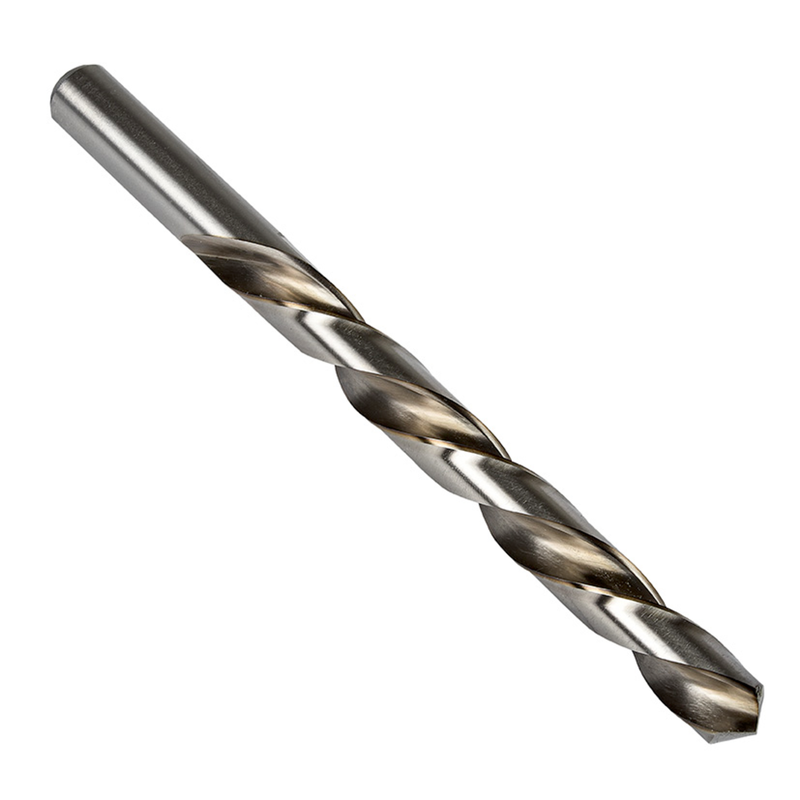

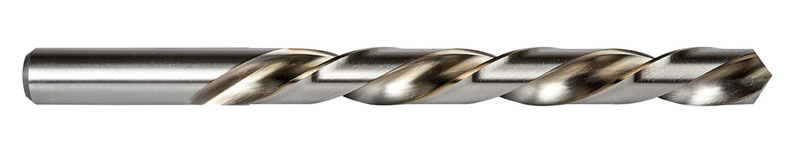

Foret à gauche de longueur Jobber à queue cylindrique, diamètre 0,4375" (7/16) avec une longueur totale de 5,1/2" et une longueur de goujure de 4,1/16" selon la norme ANSI avec un angle de pointe de 118°, en HSS finition brillante pour le perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)L107/16
GradeLumineux
Product Number5995511
Product FamilyL10
Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)5.5"
Overall Length — mm (OAL)139.7 mm
Flute Length — in (LCF)4.0625"
Flute Length — mm (LCF)103.19 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4375"
Connection Dia. — mm (DCON)11.11 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolGauche
StandardANSI
Reference Numbers
EDP Number10928
File Type Download
L107/16 — 3D Model STP Download
L107/16 — Line Drawing PDF Download
