L109/64
L109/64
L109/64

L109/64

UGC PRE5995527
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.29 CAD - $7.29 CAD
$7.29 CAD
$7.29 CAD - $7.29 CAD
$7.29 CAD

Vendu en lots de : 12

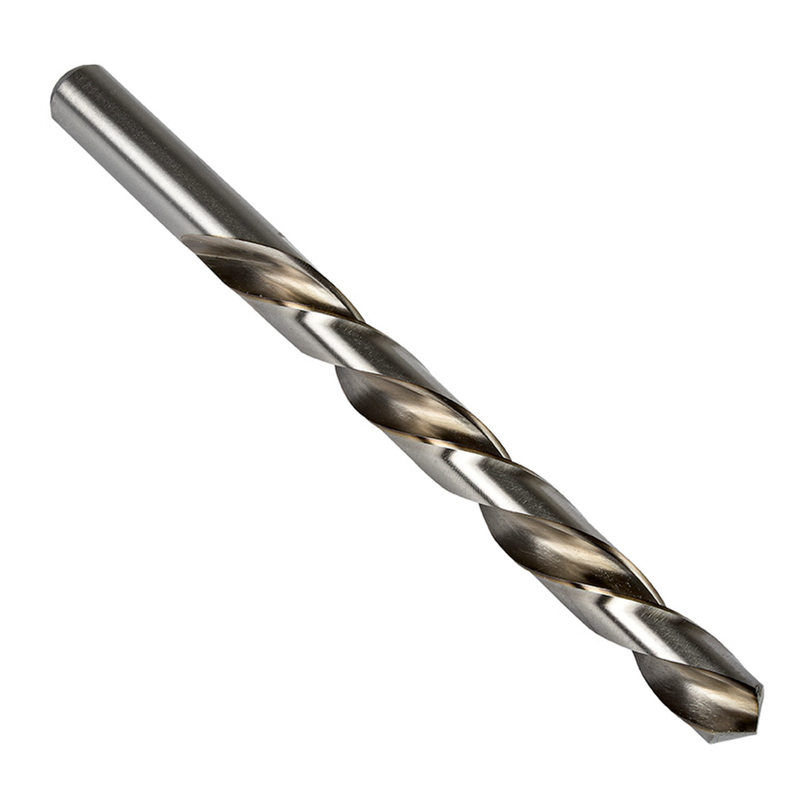

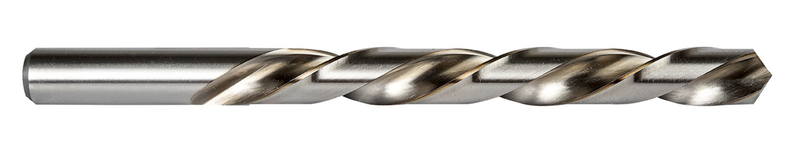

Foret hélicoïdal gauche de longueur jobber à queue cylindrique, diamètre 0,1406" (9/64) avec une longueur totale de 2.7/8" et une longueur de goujure de 1.3/4" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)L109/64
GradeLumineux
Product Number5995527
Product FamilyL10
Dimensions
Cutting Diameter — in (DC)0.1406"
Cutting Diameter — mm (DC)3.57 mm
Cutting Diameter — Fractional9/64
Overall Length — in (OAL)2.875"
Overall Length — mm (OAL)73.03 mm
Flute Length — in (LCF)1.75"
Flute Length — mm (LCF)44.45 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1406"
Connection Dia. — mm (DCON)3.57 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardANSI
Reference Numbers
EDP Number10909
File Type Download
L109/64 — 3D Model STP Download
L109/64 — Line Drawing PDF Download
