L101/16
L101/16
L101/16

L101/16

UGC PRE5995596
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.40 CAD - $6.40 CAD
$6.40 CAD
$6.40 CAD - $6.40 CAD
$6.40 CAD

Vendu en lots de : 12

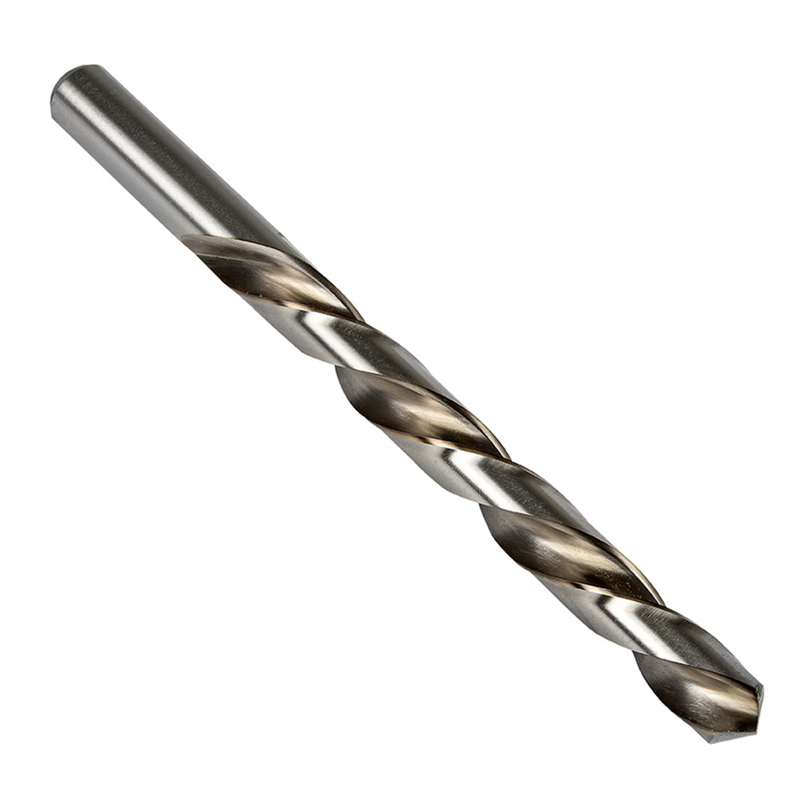

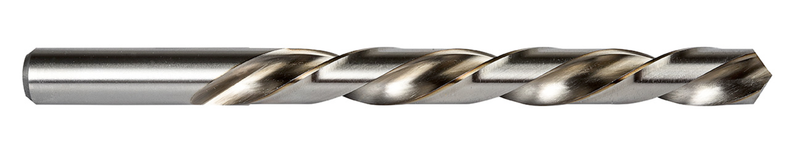

Foret hélicoïdal gauche à queue cylindrique, de longueur "Jobber", d'un diamètre de 0,0625" (1/16) avec une longueur totale de 1,7/8" et une longueur de coupe de 7/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS finition brillante pour le perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)L101/16
GradeLumineux
Product Number5995596
Product FamilyL10
Dimensions
Cutting Diameter — in (DC)0.0625"
Cutting Diameter — mm (DC)1.59 mm
Cutting Diameter — Fractional1/16
Overall Length — in (OAL)1.875"
Overall Length — mm (OAL)47.63 mm
Flute Length — in (LCF)0.875"
Flute Length — mm (LCF)22.23 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0625"
Connection Dia. — mm (DCON)1.59 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolGauche
StandardANSI
Reference Numbers
EDP Number10904
File Type Download
L101/16 — 3D Model STP Download
L101/16 — Line Drawing PDF Download
