QC0860P1/8
QC0860P1/8
QC0860P1/8

QC0860P1/8

UGC PRE5995727
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.21 CAD - $24.21 CAD
$24.21 CAD
$24.21 CAD - $24.21 CAD
$24.21 CAD

Vendu en lots de : 1

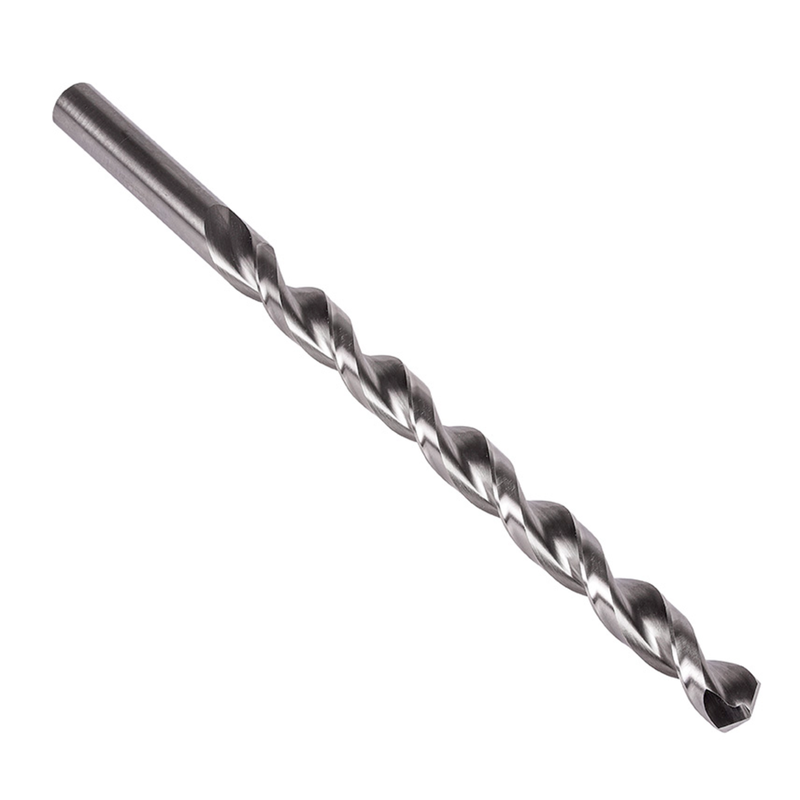

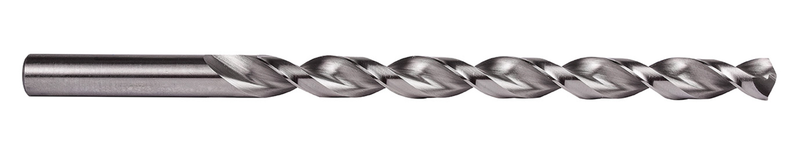

Foret extra-long à queue cylindrique, diamètre 0,1250" (1/8) avec une longueur totale de 8" et une longueur de coupe de 6" selon la norme ANSI avec une pointe à 135° auto-centrante, HSS finition brillante et hélice parabolique pour un perçage à 10xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC0860P1/8
GradeLumineux
Product Number5995727
Product FamilyQC0860P

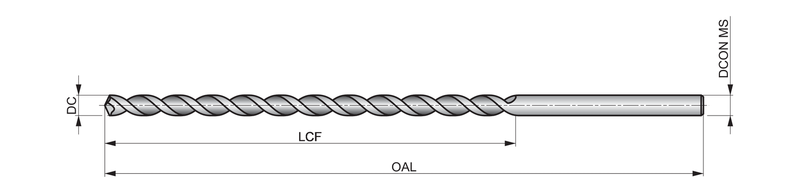

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)8.0"
Overall Length — mm (OAL)203.2 mm
Flute Length — in (LCF)6.0"
Flute Length — mm (LCF)152.4 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number55608
File Type Download
QC0860P1/8 — 3D Model STP Download
QC0860P1/8 — Line Drawing PDF Download
