QC0860P11/32
QC0860P11/32
QC0860P11/32

QC0860P11/32

UGC PRE5995730
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.86 CAD - $42.86 CAD
$42.86 CAD
$42.86 CAD - $42.86 CAD
$42.86 CAD

Vendu en lots de : 1

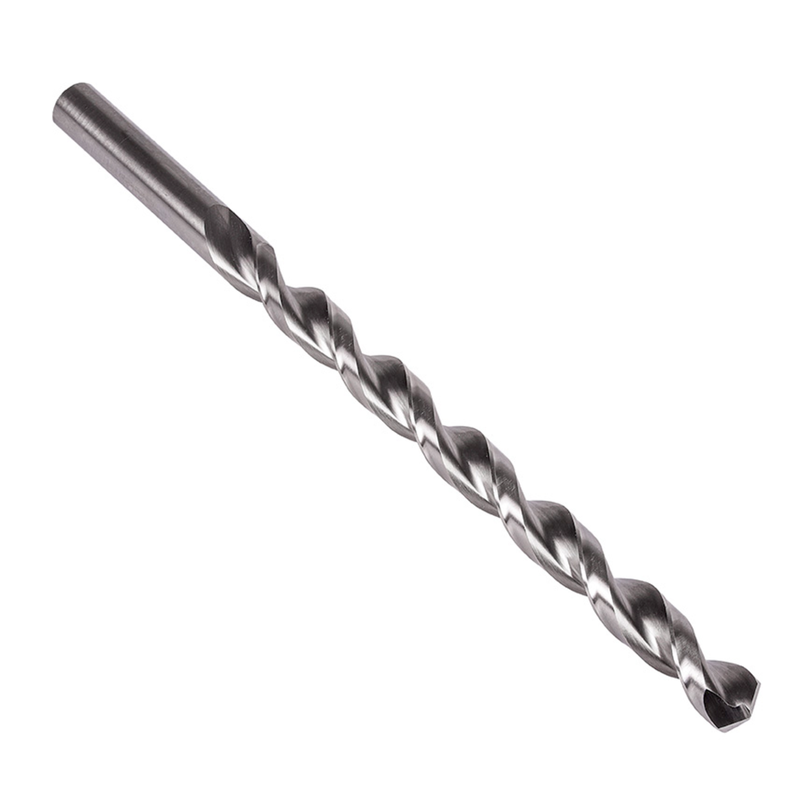

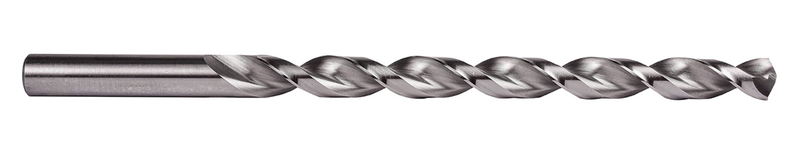

Foret extra long à queue cylindrique, diamètre 0,3438" (11/32) avec une longueur totale de 8" et une longueur de coupe de 6" selon la norme ANSI avec une pointe à 135° à auto-centrage, en HSS avec finition brillante et âme parabolique pour un perçage en 10xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)QC0860P11/32
Product Name (ISO)CQ0860P11/32
GradeLumineux
Product Number5995730
Product FamilyQC0860P

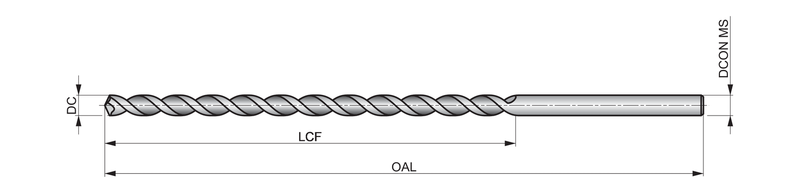

Dimensions
Cutting Diameter — in (DC)0.3438"
Cutting Diameter — mm (DC)8.73 mm
Cutting Diameter — Fractional11/32
Overall Length — in (OAL)8.0"
Overall Length — mm (OAL)203.2 mm
Flute Length — in (LCF)6.0"
Flute Length — mm (LCF)152.4 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.3438"
Connection Dia. — mm (DCON)8.73 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number55622
File Type Download
QC0860P11/32 — 3D Model STP Download
QC0860P11/32 — Line Drawing PDF Download
