Vendu en lots de : 1

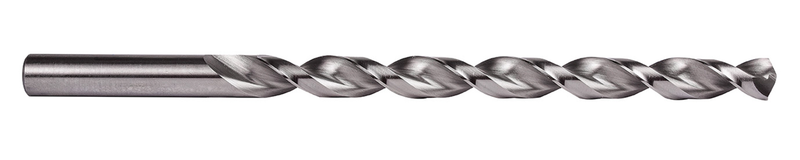

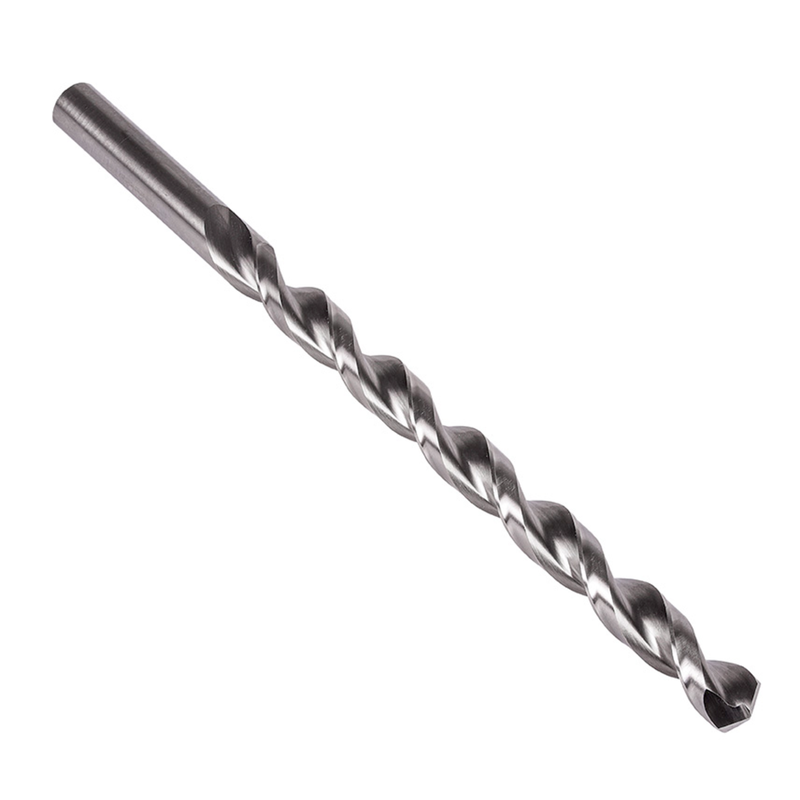

Foret extra long à queue cylindrique, diamètre 0,1719" (11/64) avec une longueur totale de 8" et une longueur de coupe de 6" selon la norme ANSI avec une pointe à 135° en croix, en acier rapide avec finition brillante et âme parabolique pour perçage 10xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)CQ0860P11/64
Product Name (ISO)QC0860P11/64
GradeLumineux
Product Number5995734
Product FamilyCQ0860P

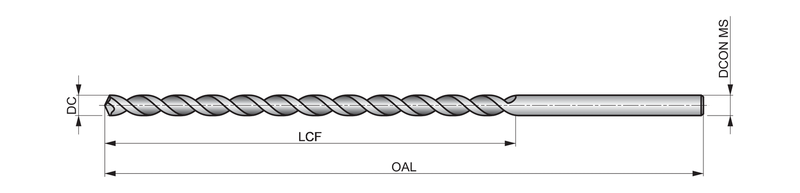

Dimensions
Cutting Diameter — in (DC)0.1719"
Cutting Diameter — mm (DC)4.37 mm
Cutting Diameter — Fractional11/64
Overall Length — in (OAL)8.0"
Overall Length — mm (OAL)203.2 mm
Flute Length — in (LCF)6.0"
Flute Length — mm (LCF)152.4 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.1719"
Connection Dia. — mm (DCON)4.37 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number55611
File Type Download
CQ0860P11/64 — 3D Model STP Download
CQ0860P11/64 — Line Drawing PDF Download
