QC0860P13/32
QC0860P13/32
QC0860P13/32

QC0860P13/32

UGC PRE5995740
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.64 CAD - $49.64 CAD
$49.64 CAD
$49.64 CAD - $49.64 CAD
$49.64 CAD

Vendu en lots de : 1

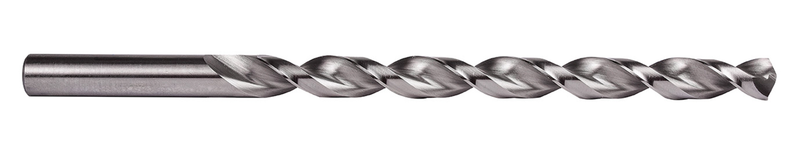

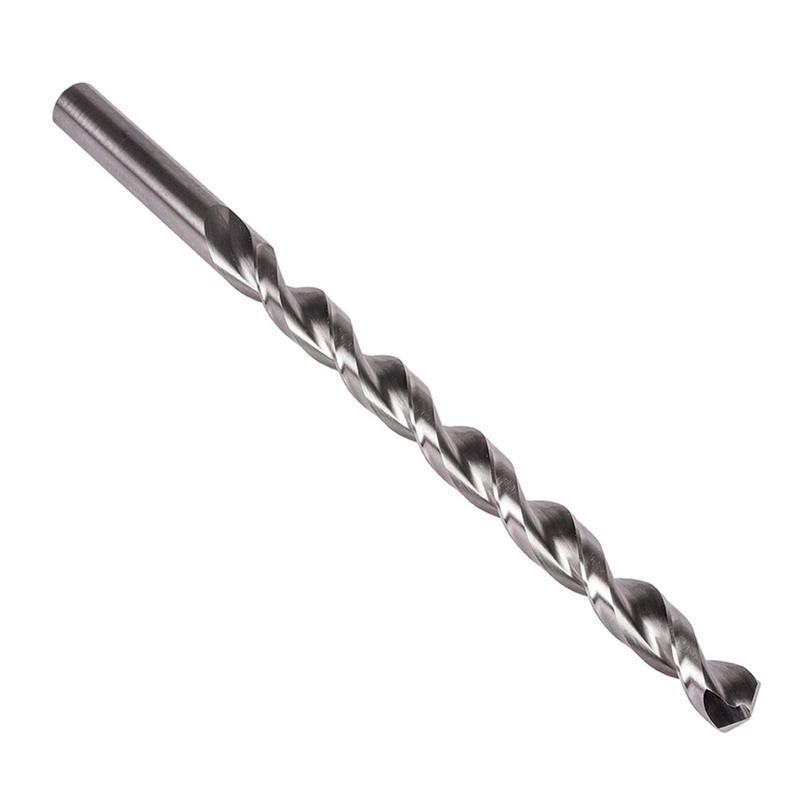

Foret extra-long à queue cylindrique, diamètre 0,4063" (13/32) avec une longueur totale de 8" et une longueur de coupe de 6" selon la norme ANSI avec pointe de centrage 135°, HSS finition brillante et hélice parabolique pour un perçage 10xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC0860P13/32
GradeLumineux
Product Number5995740
Product FamilyQC0860P

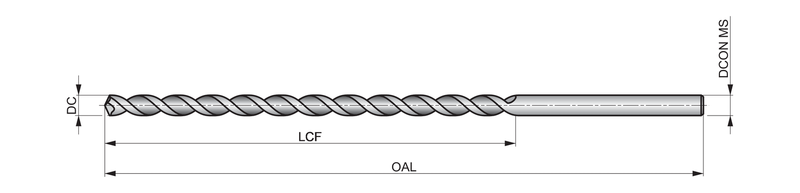

Dimensions
Cutting Diameter — in (DC)0.4063"
Cutting Diameter — mm (DC)10.32 mm
Cutting Diameter — Fractional13/32
Overall Length — in (OAL)8.0"
Overall Length — mm (OAL)203.2 mm
Flute Length — in (LCF)6.0"
Flute Length — mm (LCF)152.4 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.4063"
Connection Dia. — mm (DCON)10.32 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number55626
File Type Download
QC0860P13/32 — 3D Model STP Download
QC0860P13/32 — Line Drawing PDF Download
