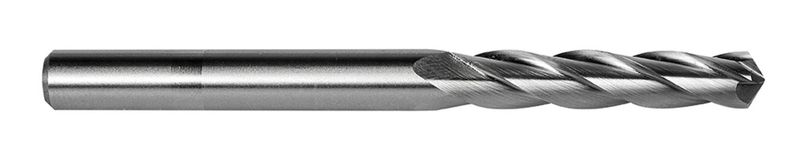

ATR41N2
ATR41N2

ATR41N2

UGC PRE5995742
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.03 CAD - $15.03 CAD
$15.03 CAD
$15.03 CAD - $15.03 CAD
$15.03 CAD

Vendu en lots de : 12

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ATR41N2
GradeLumineux
Product Number5995742
Product FamilyATR41

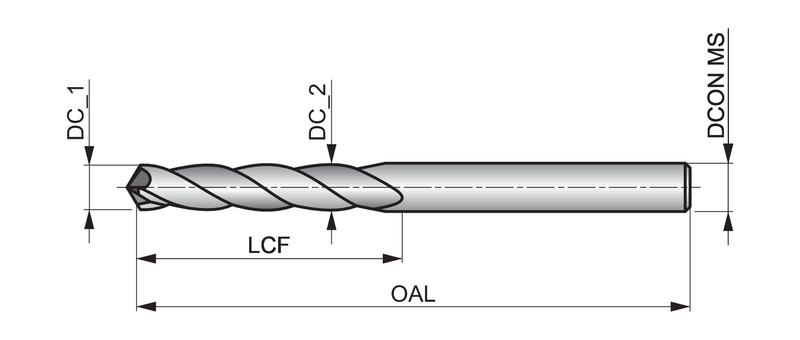

Dimensions
Overall Length — in (OAL)2.25"
Overall Length — mm (OAL)57.15 mm
Flute Length — in (LCF)0.875"
Flute Length — mm (LCF)22.23 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.128"
Connection Dia. — mm (DCON)3.25 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number41702
File Type Download
ATR41N2 — 3D Model STP Download
ATR41N2 — Line Drawing PDF Download
