CO500-121/8
CO500-121/8

CO500-121/8

UGC PRE5995763
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.90 CAD - $19.90 CAD
$19.90 CAD
$19.90 CAD - $19.90 CAD
$19.90 CAD

Vendu en lots de : 12

Foret long d'aviation à queue cylindrique, diamètre 0,1250" (1/8) avec une longueur totale de 12" et une longueur de coupe de 1,5/8" selon la norme NAS907 Type J avec pointe auto-centrante robuste à 135°, HSS-E à base de cobalt avec finition bronze pour perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO500-121/8
GradeBronze
Product Number5995763
Product FamilyCO500-12

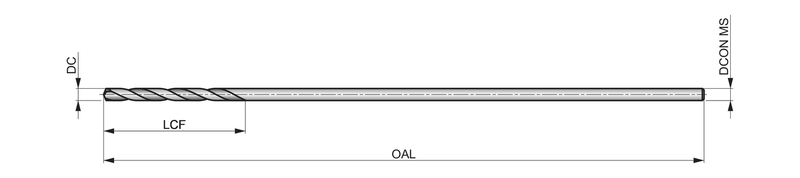

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)1.625"
Flute Length — mm (LCF)41.28 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number52608
File Type Download
CO500-121/8 — 3D Model STP Download
CO500-121/8 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
