CO500-1211/64
CO500-1211/64

CO500-1211/64

UGC PRE5995767
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.10 CAD - $22.10 CAD
$22.10 CAD
$22.10 CAD - $22.10 CAD
$22.10 CAD

Vendu en lots de : 12

Foret long d'aviation à queue droite, diamètre 0,1719" (11/64) avec une longueur totale de 12" et une longueur utile de 2.1/8" selon la norme NAS907 Type J avec pointe de centrage à 135° pour usage intensif, HSS-E à base de cobalt avec finition bronze pour un perçage à 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO500-1211/64
GradeBronze
Product Number5995767
Product FamilyCO500-12

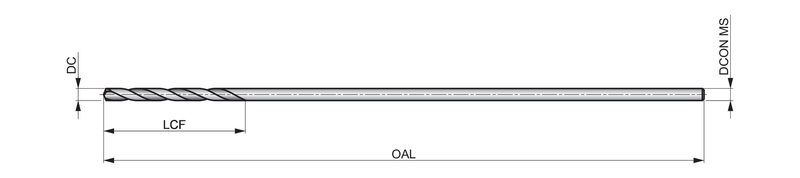

Dimensions
Cutting Diameter — in (DC)0.1719"
Cutting Diameter — mm (DC)4.37 mm
Cutting Diameter — Fractional11/64
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)2.125"
Flute Length — mm (LCF)53.98 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1719"
Connection Dia. — mm (DCON)4.37 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number52611
File Type Download
CO500-1211/64 — 3D Model STP Download
CO500-1211/64 — Line Drawing PDF Download
