CO500-1213/64
CO500-1213/64

CO500-1213/64

UGC PRE5995771
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.23 CAD - $28.23 CAD
$28.23 CAD
$28.23 CAD - $28.23 CAD
$28.23 CAD

Vendu en lots de : 6

Foret long aéronautique à queue cylindrique, diamètre 0,2031" (13/64) avec une longueur totale de 12" et une longueur de coupe de 2.7/16" selon la norme NAS907 Type J avec une pointe de centrage robuste à 135°, en HSS-E au cobalt avec finition bronze pour un perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO500-1213/64
GradeBronze
Product Number5995771
Product FamilyCO500-12

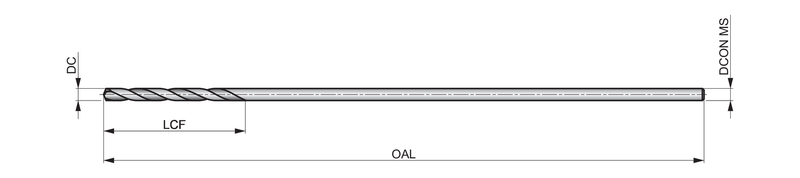

Dimensions
Cutting Diameter — in (DC)0.2031"
Cutting Diameter — mm (DC)5.16 mm
Cutting Diameter — Fractional13/64
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)2.4375"
Flute Length — mm (LCF)61.91 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2031"
Connection Dia. — mm (DCON)5.16 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number52613
File Type Download
CO500-1213/64 — 3D Model STP Download
CO500-1213/64 — Line Drawing PDF Download
