CO500-123/16
CO500-123/16

CO500-123/16

UGC PRE5995779
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.53 CAD - $21.53 CAD
$21.53 CAD
$21.53 CAD - $21.53 CAD
$21.53 CAD

Vendu en lots de : 6

Foret long d'aviation à queue cylindrique, diamètre 0,1875" (3/16) avec une longueur totale de 12" et une longueur de coupe de 2.5/16" selon la norme NAS907 Type J avec une pointe fendue robuste à 135°, HSS-E à base de cobalt avec finition bronze pour un perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO500-123/16
GradeBronze
Product Number5995779
Product FamilyCO500-12

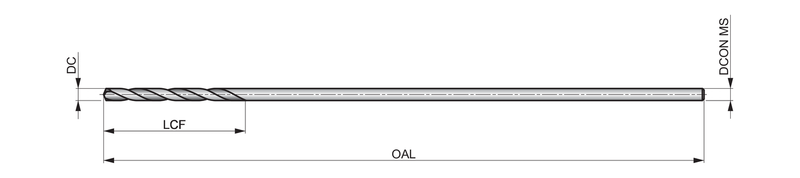

Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)2.3125"
Flute Length — mm (LCF)58.74 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number52612
File Type Download
CO500-123/16 — 3D Model STP Download
CO500-123/16 — Line Drawing PDF Download
