QC0860P7/16
QC0860P7/16
QC0860P7/16

QC0860P7/16

UGC PRE5995803
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.50 CAD - $62.50 CAD
$62.50 CAD
$62.50 CAD - $62.50 CAD
$62.50 CAD

Vendu en lots de : 1

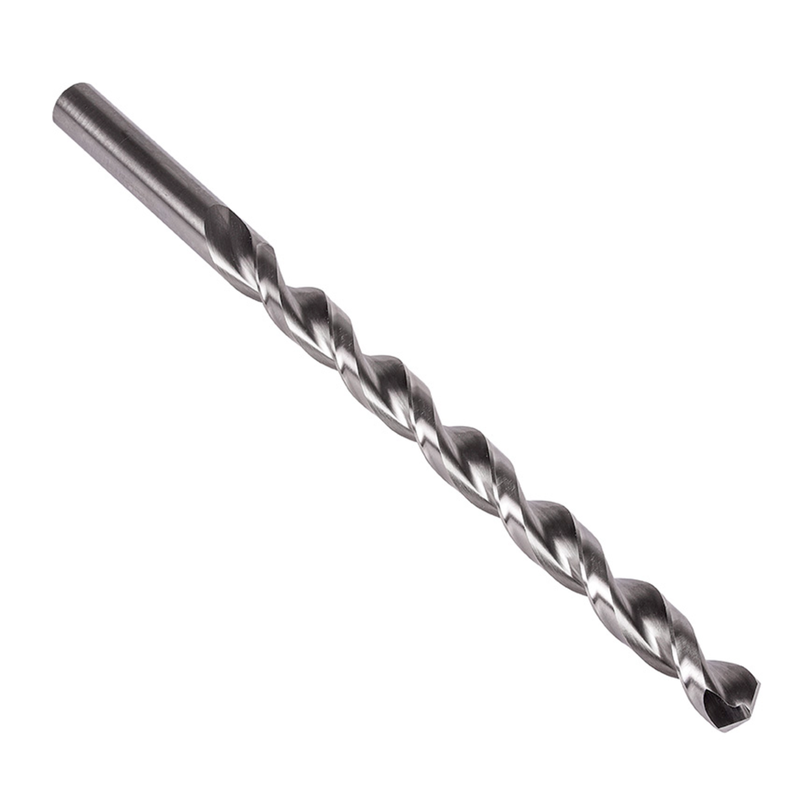

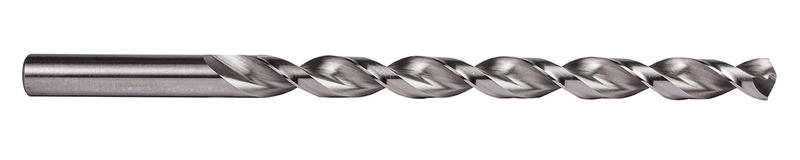

Foret extra-long à queue cylindrique, diamètre 0,4375" (7/16) avec une longueur totale de 8" et une longueur de goujure de 6" selon la norme ANSI avec une pointe de centrage à 135°, en HSS avec finition brillante et âme parabolique pour perçage 10xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)CQ0860P7/16
Product Name (ISO)QC0860P7/16
GradeLumineux
Product Number5995803
Product FamilyQC0860P

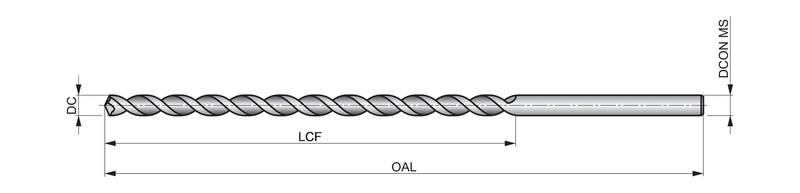

Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)8.0"
Overall Length — mm (OAL)203.2 mm
Flute Length — in (LCF)6.0"
Flute Length — mm (LCF)152.4 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.4375"
Connection Dia. — mm (DCON)11.11 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number55628
File Type Download
QC0860P7/16 — 3D Model STP Download
QC0860P7/16 — Line Drawing PDF Download
