CQ0860P7/32
CQ0860P7/32
CQ0860P7/32

CQ0860P7/32

UGC PRE5995806
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.76 CAD - $30.76 CAD
$30.76 CAD
$30.76 CAD - $30.76 CAD
$30.76 CAD

Vendu en lots de : 1

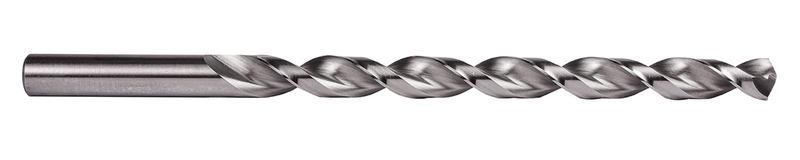

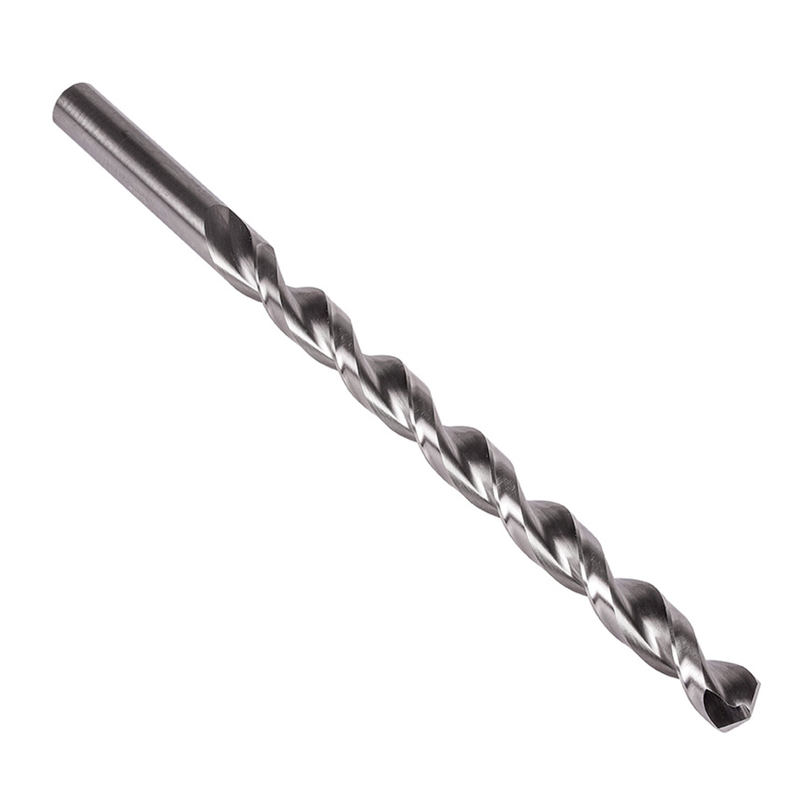

Foret extra-long à queue cylindrique, diamètre 0,2188" (7/32) avec une longueur totale de 8" et une longueur de coupe de 6" selon la norme ANSI avec une pointe à 135° auto-centrante, en acier rapide avec finition brillante et âme parabolique pour perçage 10xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC0860P7/32
GradeLumineux
Product Number5995806
Product FamilyQC0860P

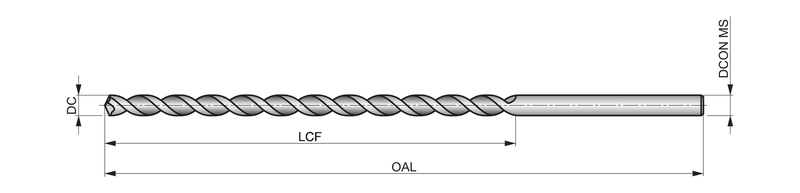

Dimensions
Cutting Diameter — in (DC)0.2188"
Cutting Diameter — mm (DC)5.56 mm
Cutting Diameter — Fractional7/32
Overall Length — in (OAL)8.0"
Overall Length — mm (OAL)203.2 mm
Flute Length — in (LCF)6.0"
Flute Length — mm (LCF)152.4 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.2188"
Connection Dia. — mm (DCON)5.56 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number55614
File Type Download
CQ0860P7/32 — 3D Model STP Download
CQ0860P7/32 — Line Drawing PDF Download
