UGC PRE5995821
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$108.93 CAD - $108.93 CAD
$108.93 CAD
$108.93 CAD - $108.93 CAD
$108.93 CAD

Vendu en lots de : 1

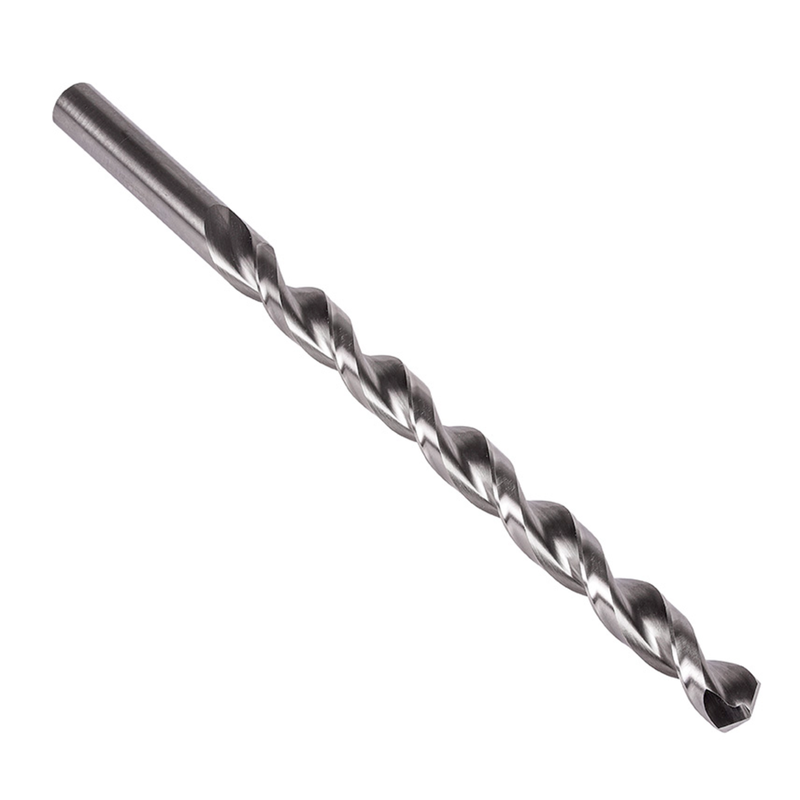

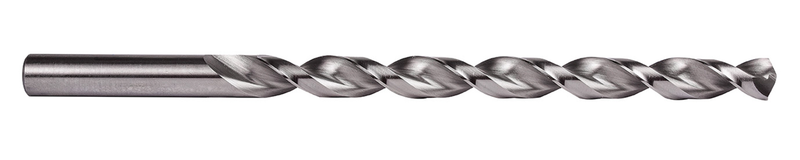

Foret extra-long à queue cylindrique, diamètre 0,5000" (1/2) avec une longueur totale de 12" et une longueur de coupe de 9" selon la norme ANSI avec une pointe à 135° affûtée en croix, en acier rapide avec finition brillante et hélice parabolique pour un perçage jusqu'à 10xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)QC1290P1/2
GradeLumineux
Product Number5995821
Product FamilyQC1290P
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)9.0"
Flute Length — mm (LCF)228.6 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number60332
File Type Download
QC1290P1/2 — 3D Model STP Download
QC1290P1/2 — Line Drawing PDF Download
