CO500-67/64
CO500-67/64

CO500-67/64

UGC PRE5995854
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.04 CAD - $7.04 CAD
$7.04 CAD
$7.04 CAD - $7.04 CAD
$7.04 CAD

Vendu en lots de : 12

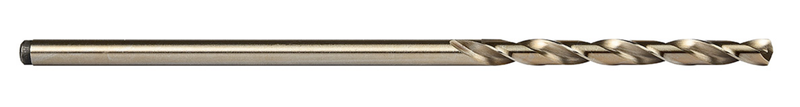

Foret long d'aviation à queue cylindrique, diamètre 0,1094" (7/64), longueur totale de 6" et longueur de coupe de 1,1/2", selon la norme NAS907 Type J, avec pointe autocentrante renforcée à 135°, en HSS-E cobalt avec finition bronze pour un perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO500-67/64
GradeBronze
Product Number5995854
Product FamilyCO500-6
Dimensions
Cutting Diameter — in (DC)0.1094"
Cutting Diameter — mm (DC)2.78 mm
Cutting Diameter — Fractional7/64
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)1.5"
Flute Length — mm (LCF)38.1 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1094"
Connection Dia. — mm (DCON)2.78 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number53607
File Type Download
CO500-67/64 — 3D Model STP Download
CO500-67/64 — Line Drawing PDF Download
