CO501-12N10
CO501-12N10

CO501-12N10

UGC PRE5995861
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.53 CAD - $22.53 CAD
$22.53 CAD
$22.53 CAD - $22.53 CAD
$22.53 CAD

Vendu en lots de : 6

Foret long d'aviation à queue droite, diamètre 0,1935" (N10) avec une longueur totale de 12" et une longueur de coupe de 2,7/16" selon la norme NAS907 Type J avec pointe auto-centrante robuste à 135°, HSS-E à base de cobalt avec finition bronze pour perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO501-12N10
GradeBronze
Product Number5995861
Product FamilyCO501-12

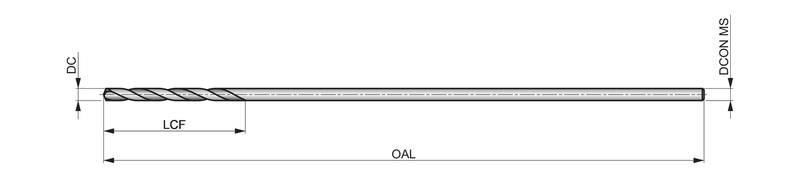

Dimensions
Cutting Diameter — in (DC)0.1935"
Cutting Diameter — mm (DC)4.91 mm
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)2.4375"
Flute Length — mm (LCF)61.91 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1935"
Connection Dia. — mm (DCON)4.91 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number52810
File Type Download
CO501-12N10 — 3D Model STP Download
CO501-12N10 — Line Drawing PDF Download
