CO501-12N16
CO501-12N16

CO501-12N16

UGC PRE5995873
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.60 CAD - $23.60 CAD
$23.60 CAD
$23.60 CAD - $23.60 CAD
$23.60 CAD

Vendu en lots de : 12

Foret rallongé pour aviation avec queue cylindrique, diamètre 0,1770" (N16) avec une longueur totale de 12" et une longueur de coupe de 2.3/16" selon la norme NAS907 Type J avec une pointe fendue robuste à 135°, en HSS-E à base de cobalt avec finition bronze pour un perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO501-12N16
GradeBronze
Product Number5995873
Product FamilyCO501-12

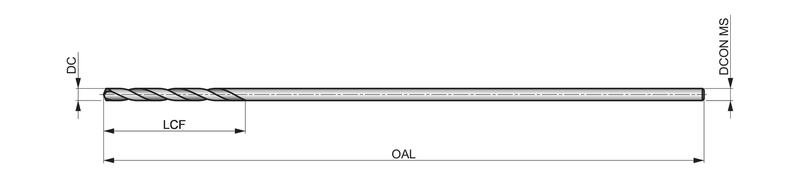

Dimensions
Cutting Diameter — in (DC)0.177"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)2.1875"
Flute Length — mm (LCF)55.56 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.177"
Connection Dia. — mm (DCON)4.5 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number52816
File Type Download
CO501-12N16 — 3D Model STP Download
CO501-12N16 — Line Drawing PDF Download
