CO501-12N2
CO501-12N2

CO501-12N2

UGC PRE5995880
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.39 CAD - $28.39 CAD
$28.39 CAD
$28.39 CAD - $28.39 CAD
$28.39 CAD

Vendu en lots de : 6

Foret long d'aviation à queue cylindrique, diamètre 0,2210" (N2) avec une longueur totale de 12" et une longueur de coupe de 2.5/8" selon la norme NAS907 Type J avec pointe auto-centrante renforcée à 135°, HSS-E à base de cobalt avec finition bronze pour un perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO501-12N2
GradeBronze
Product Number5995880
Product FamilyCO501-12
Dimensions
Cutting Diameter — in (DC)0.221"
Cutting Diameter — mm (DC)5.61 mm
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)2.625"
Flute Length — mm (LCF)66.68 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.221"
Connection Dia. — mm (DCON)5.61 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number52802
File Type Download
CO501-12N2 — 3D Model STP Download

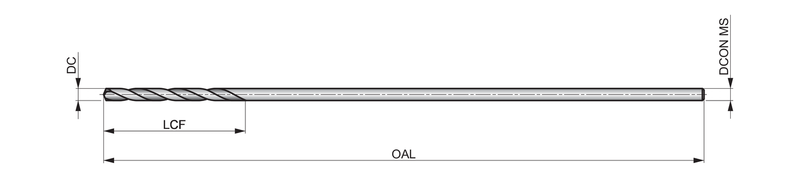

CO501-12N2 — Line Drawing PDF Download
