CO501-12N30
CO501-12N30

CO501-12N30

UGC PRE5995899
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.67 CAD - $20.67 CAD
$20.67 CAD
$20.67 CAD - $20.67 CAD
$20.67 CAD

Vendu en lots de : 12

Foret long d'aviation à queue cylindrique, diamètre 0,1285" (N30) avec une longueur totale de 12" et une longueur de coupe de 1,5/8", conforme à la norme NAS907 Type J avec pointe fendue robuste à 135°, en HSS-E au cobalt avec finition bronze pour perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le superalliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO501-12N30
GradeBronze
Product Number5995899
Product FamilyCO501-12
Dimensions
Cutting Diameter — in (DC)0.1285"
Cutting Diameter — mm (DC)3.26 mm
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)1.625"
Flute Length — mm (LCF)41.28 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1285"
Connection Dia. — mm (DCON)3.26 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number52830
File Type Download
CO501-12N30 — 3D Model STP Download

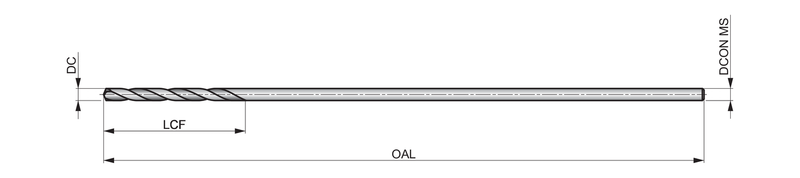

CO501-12N30 — Line Drawing PDF Download
