CO501-12N40
CO501-12N40

CO501-12N40

UGC PRE5995909
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.67 CAD - $21.67 CAD
$21.67 CAD
$21.67 CAD - $21.67 CAD
$21.67 CAD

Vendu en lots de : 12

Foret long d'aviation à queue cylindrique, diamètre 0,0980" (N40) avec une longueur totale de 12" et une longueur de coupe de 1.3/8" selon la norme NAS907 Type J avec pointe en croix renforcée à 135°, HSS-E à base de cobalt avec finition bronze pour perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO501-12N40
GradeBronze
Product Number5995909
Product FamilyCO501-12
Dimensions
Cutting Diameter — in (DC)0.098"
Cutting Diameter — mm (DC)2.49 mm
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)1.375"
Flute Length — mm (LCF)34.93 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.098"
Connection Dia. — mm (DCON)2.49 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number52840
File Type Download
CO501-12N40 — 3D Model STP Download

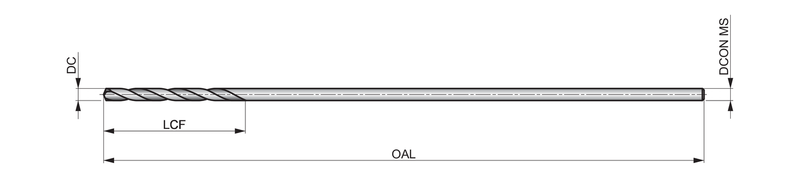

CO501-12N40 — Line Drawing PDF Download
