CO501-6N21
CO501-6N21

CO501-6N21

UGC PRE5996000
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.16 CAD - $8.16 CAD
$8.16 CAD
$8.16 CAD - $8.16 CAD
$8.16 CAD

Vendu en lots de : 12

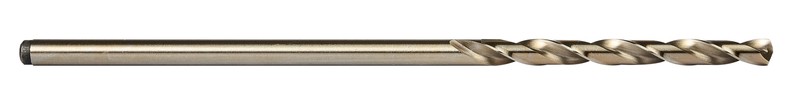

Foret long d'aviation à queue cylindrique, diamètre 0,1590" (N21) avec une longueur totale de 6" et une longueur de coupe de 2,1/8" selon la norme NAS907 Type J avec pointe auto-centrante robuste de 135°, HSS-E cobalt avec finition bronze pour perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO501-6N21
GradeBronze
Product Number5996000
Product FamilyCO501-6

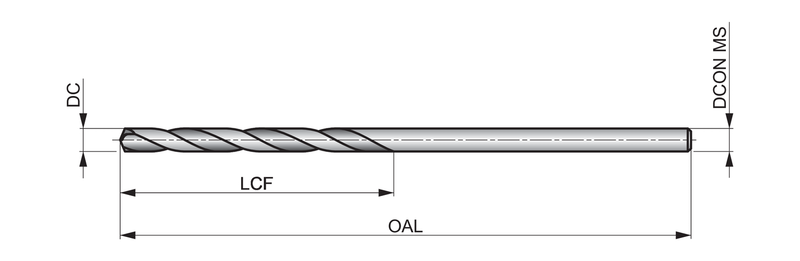

Dimensions
Cutting Diameter — in (DC)0.159"
Cutting Diameter — mm (DC)4.04 mm
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)2.125"
Flute Length — mm (LCF)53.98 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.159"
Connection Dia. — mm (DCON)4.04 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number53721
File Type Download
CO501-6N21 — 3D Model STP Download
CO501-6N21 — Line Drawing PDF Download
