CO501-6N26
CO501-6N26

CO501-6N26

UGC PRE5996018
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.36 CAD - $8.36 CAD
$8.36 CAD
$8.36 CAD - $8.36 CAD
$8.36 CAD

Vendu en lots de : 12

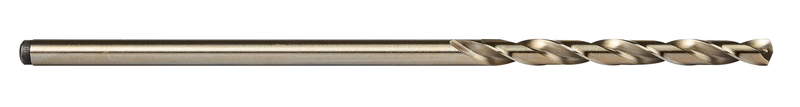

Foret long d'aviation à queue cylindrique, diamètre 0,1470" (N26) avec une longueur totale de 6" et une longueur de coupe de 1,7/8" selon la norme NAS907 Type J avec une pointe hélicoïdale de 135° renforcée, en HSS-E cobalté avec finition bronze pour un perçage 4xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CO501-6N26
GradeBronze
Product Number5996018
Product FamilyCO501-6
Dimensions
Cutting Diameter — in (DC)0.147"
Cutting Diameter — mm (DC)3.73 mm
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)1.875"
Flute Length — mm (LCF)47.63 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.147"
Connection Dia. — mm (DCON)3.73 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number53726
File Type Download
CO501-6N26 — 3D Model STP Download
CO501-6N26 — Line Drawing PDF Download
