M41CON1
M41CON1
M41CON1

M41CON1

UGC PRE5996023
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.40 CAD - $7.40 CAD
$7.40 CAD
$7.40 CAD - $7.40 CAD
$7.40 CAD

Vendu en lots de : 12

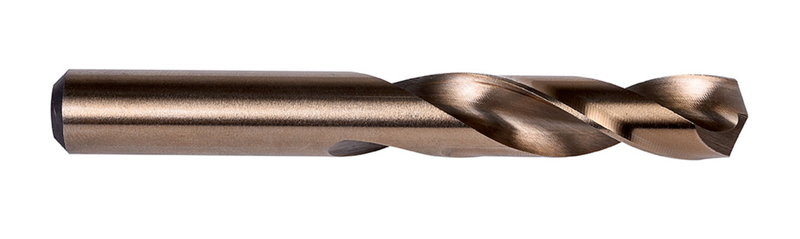

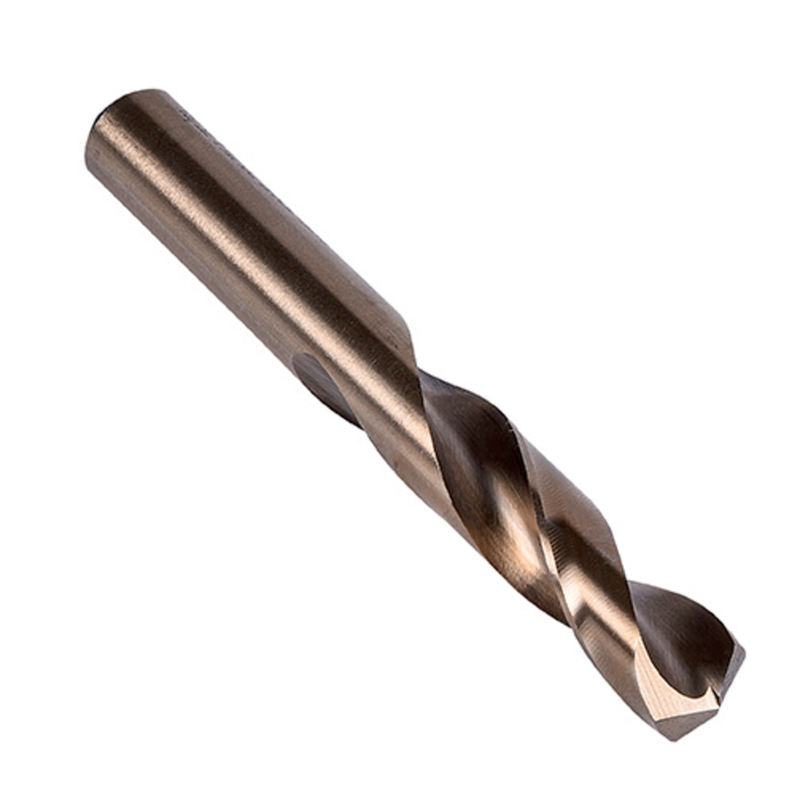

Foret court à queue cylindrique, diamètre 0,2280" (N1) d'une longueur totale de 2.7/16" et d'une longueur de coupe de 1.5/16" selon la norme ANSI avec une pointe à 135° en croix, en HSS-E au cobalt avec finition bronze pour un perçage 2.5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)M41CON1
GradeBronze
Product Number5996023
Product FamilyM41CO
Dimensions
Cutting Diameter — in (DC)0.228"
Cutting Diameter — mm (DC)5.79 mm
Overall Length — in (OAL)2.4375"
Overall Length — mm (OAL)61.91 mm
Flute Length — in (LCF)1.3125"
Flute Length — mm (LCF)33.34 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.228"
Connection Dia. — mm (DCON)5.79 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number41301
File Type Download
M41CON1 — 3D Model STP Download
M41CON1 — Line Drawing PDF Download
